Virgin Media TV Guide

Former Telewest/Virgin Media box used for standard definition TV Services.

Starting up…

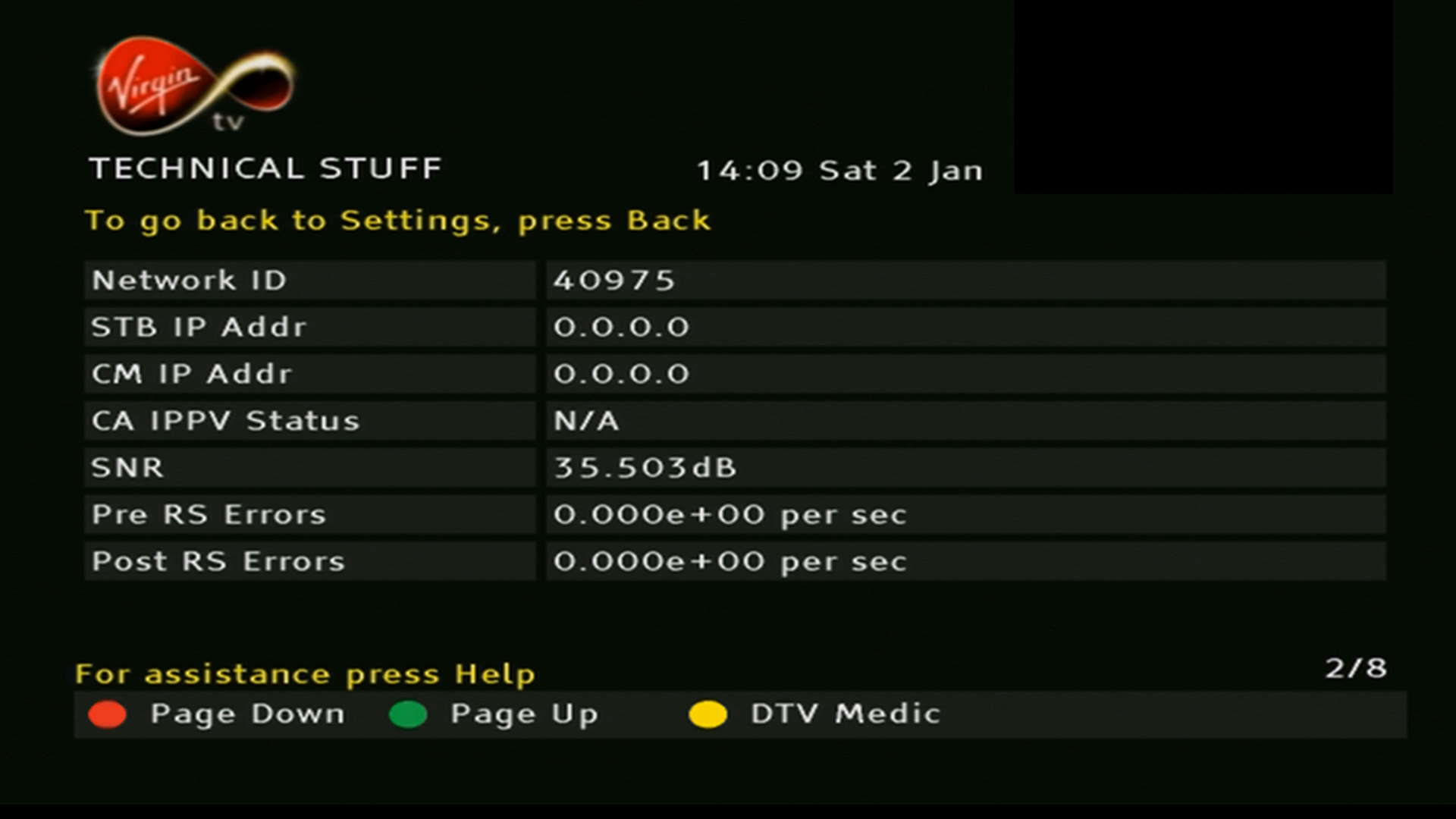

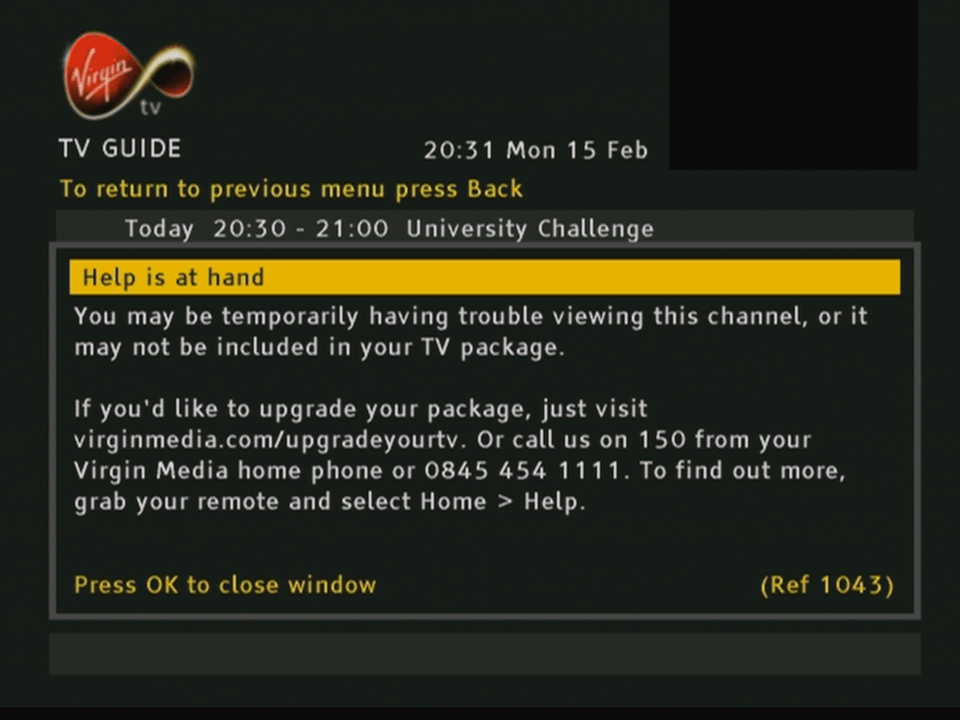

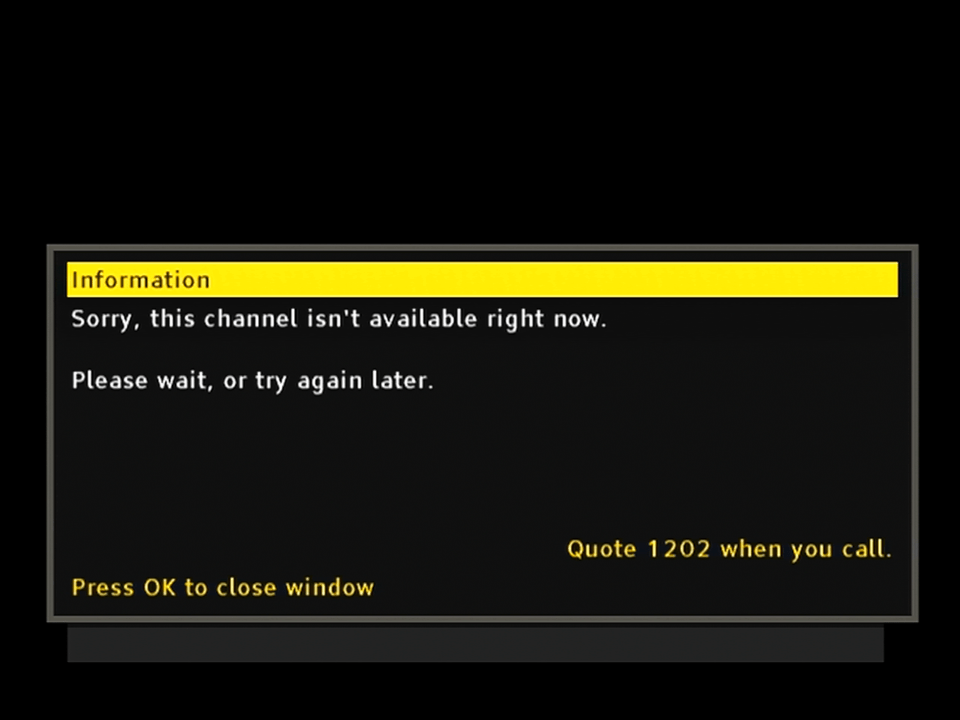

Sadly the NetID for this box does not match my area, which means channels cannot be watched. Virgin have migrated their streams to MPEG4 anyway which this box cannot decode, however radio channels remain in MPEG2 although they are tied to the NetID which is why they don’t appear here.

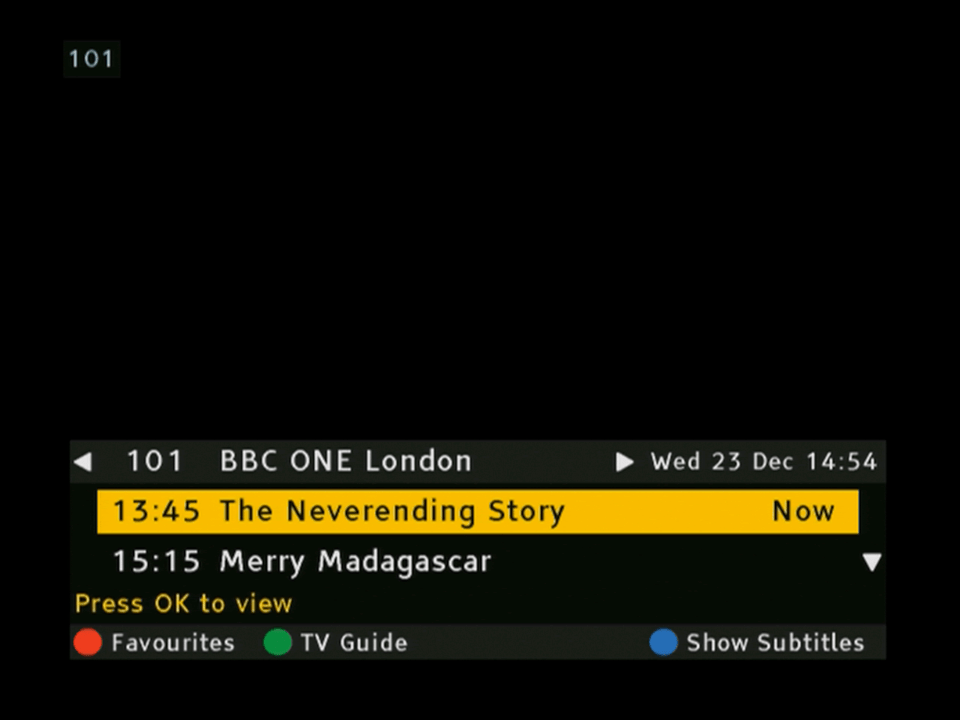

The now and next banner that appears when you change channels. If you are used to Sky’s interface you will be familiar to how Virgin’s guide works since it’s mostly the same principles. Left and Right lets you browse the different channels, which unlike Sky will automatically filer out unsubscribed channels, and you can view information for all channels for the next 24 hours

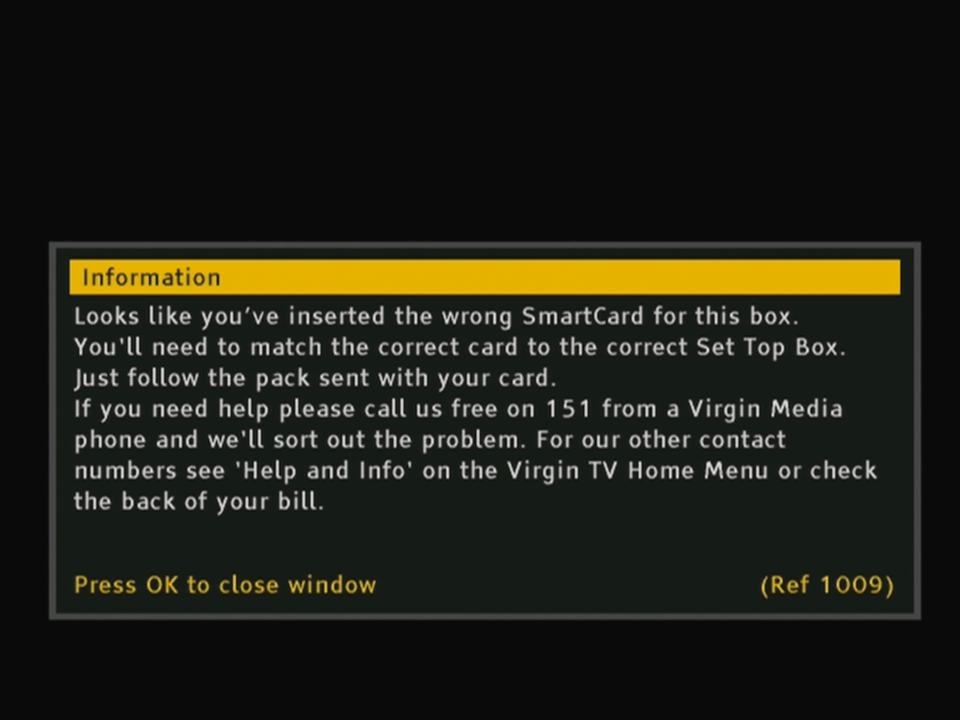

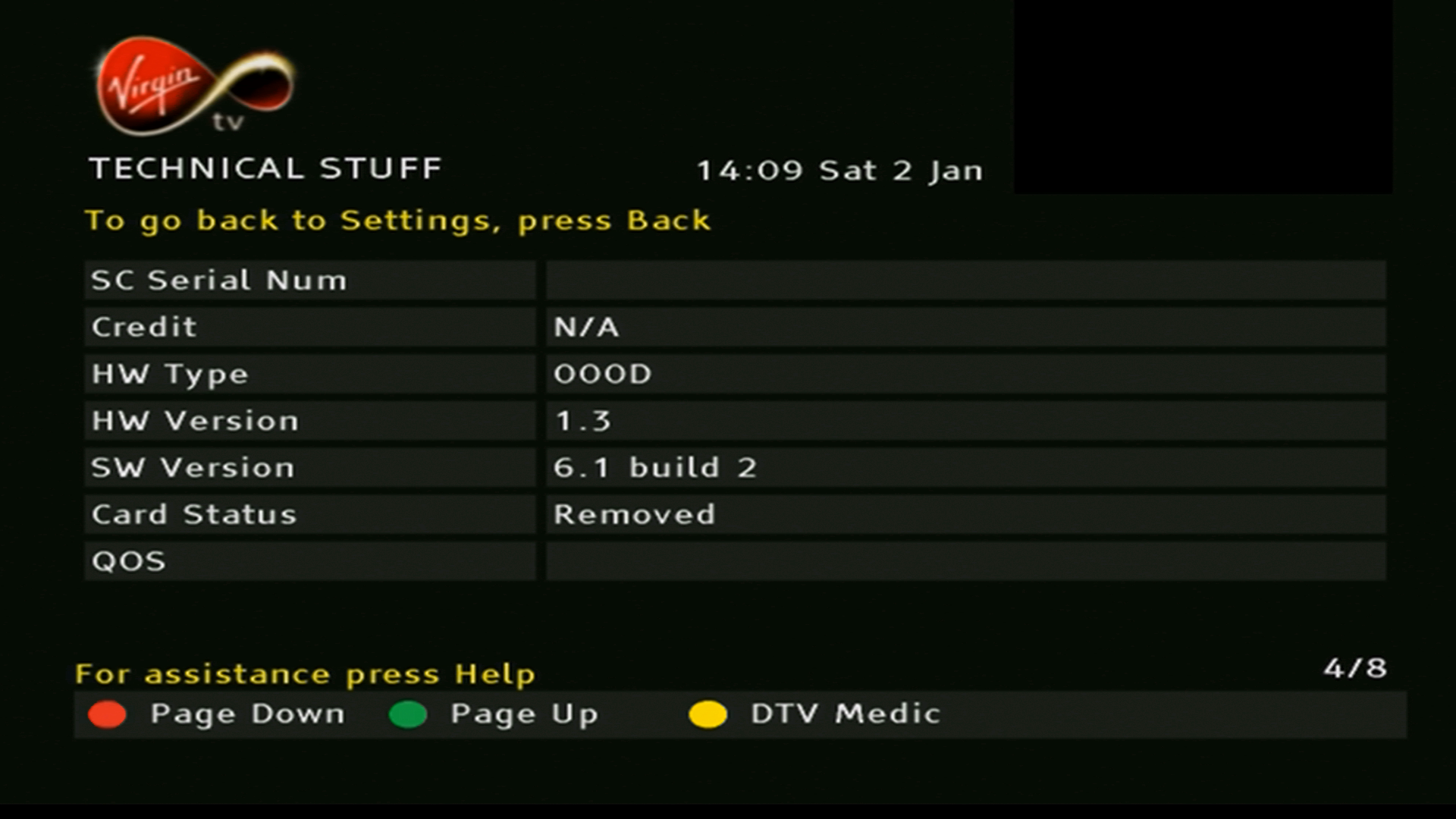

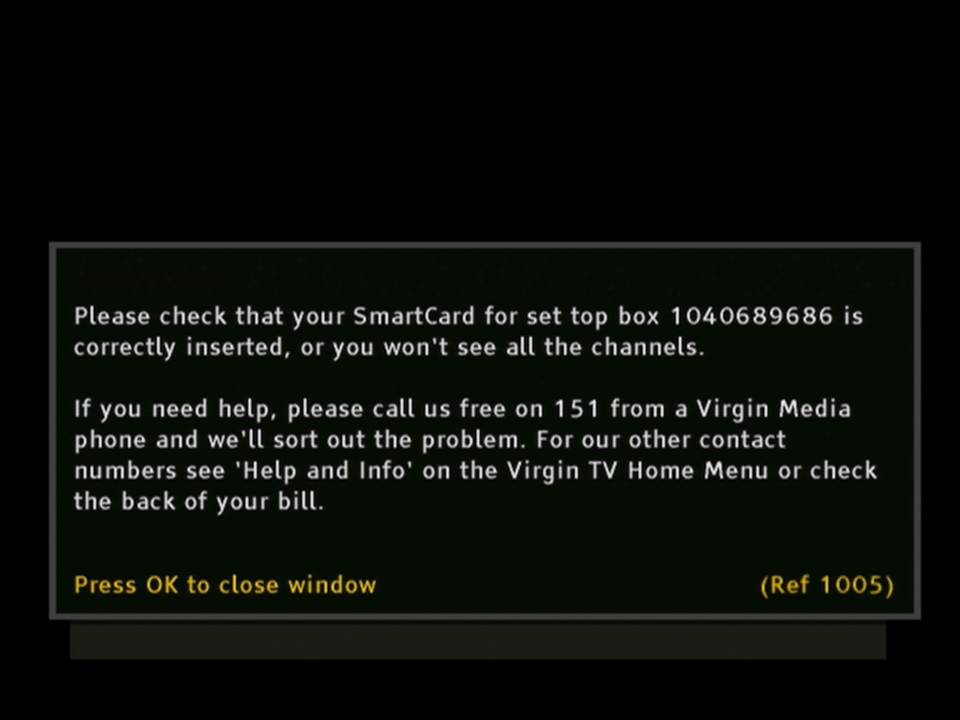

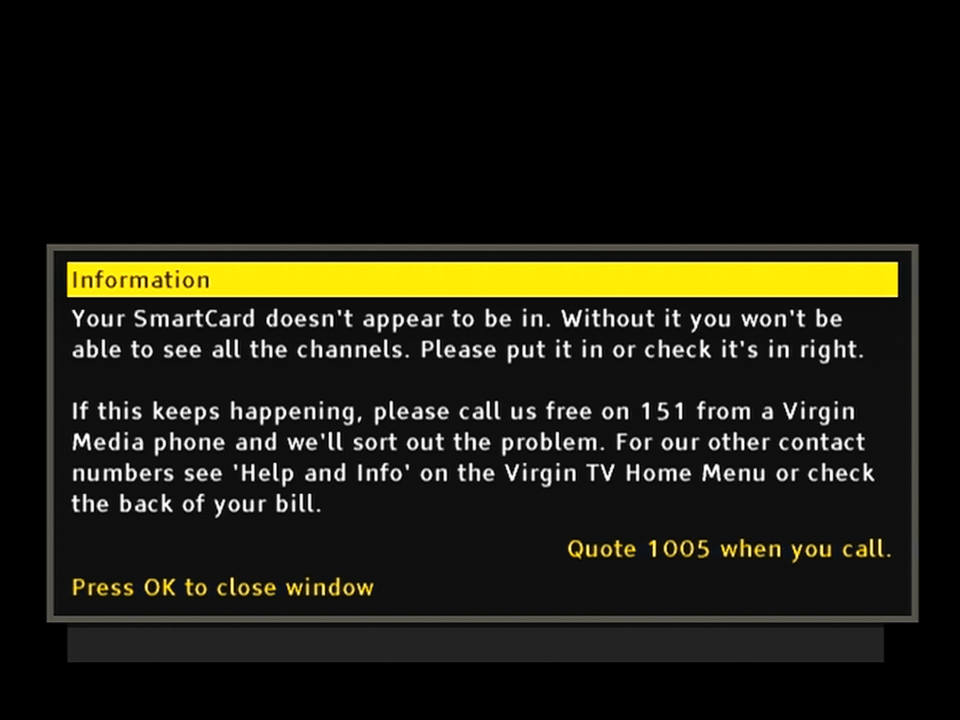

When you remove the smartcard from the set top box

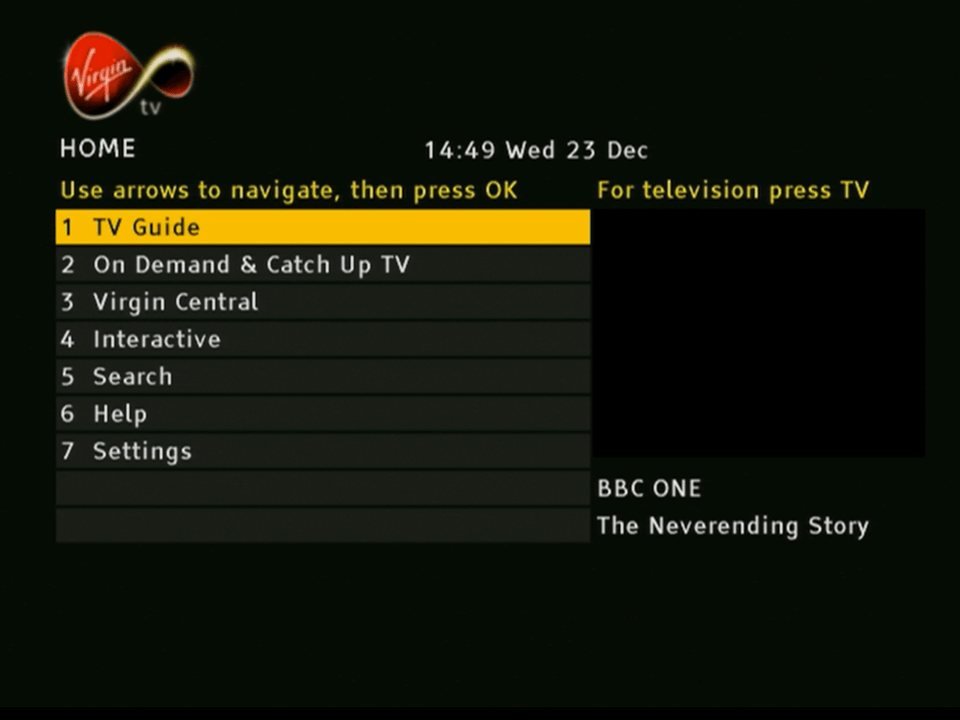

The main home screen, typically the channel you are watching appears in the box to the right. You can’t do that on a regular Sky Digibox. From here you can also access the on demand and catch services, which at the time would have consisted of BBC iPlayer and content from ITV and Channel 4. For a brief period Virgin also offered box-sets in the form of Virgin Central which could be accessed like a regular channel

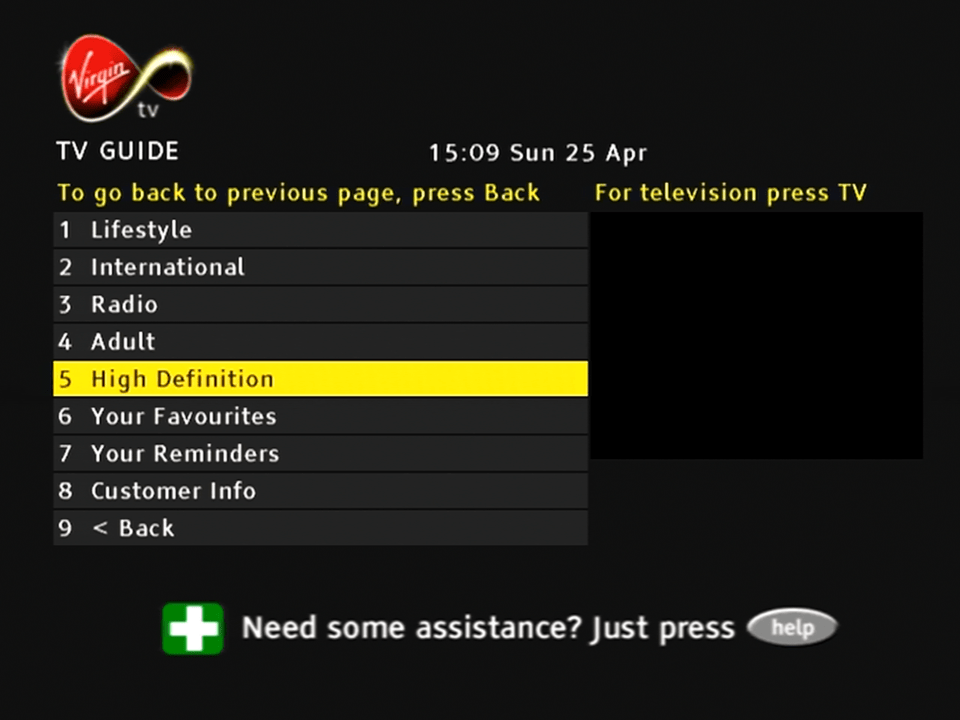

Channels can be divided into multiple genres. Oddly there’s a high definition section there, despite the box lacking the ability to decode HD channels.

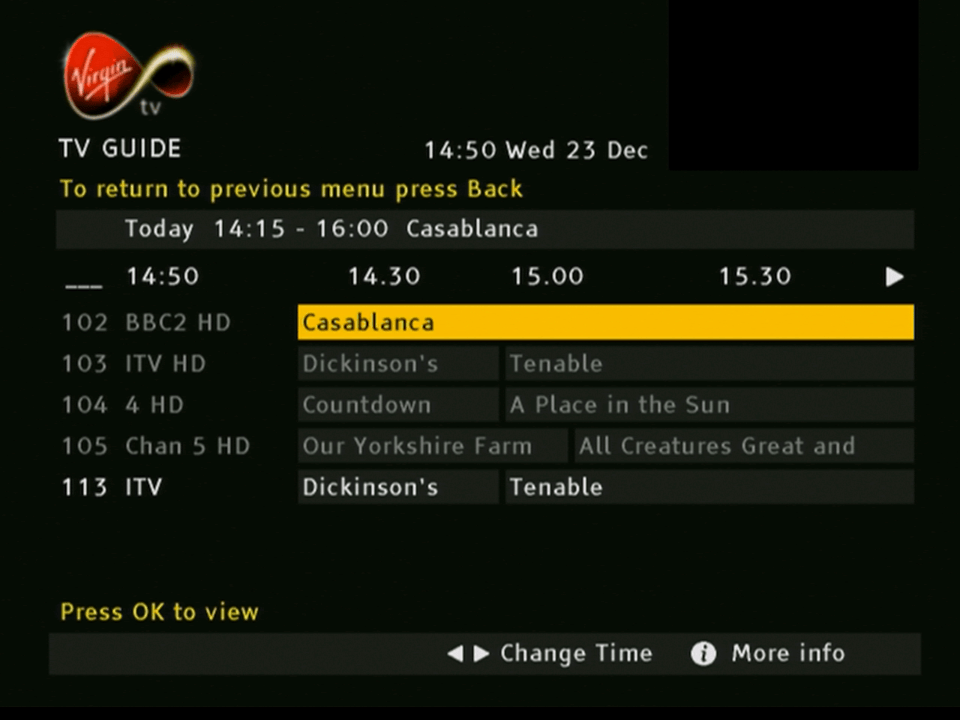

The main TV guide screen

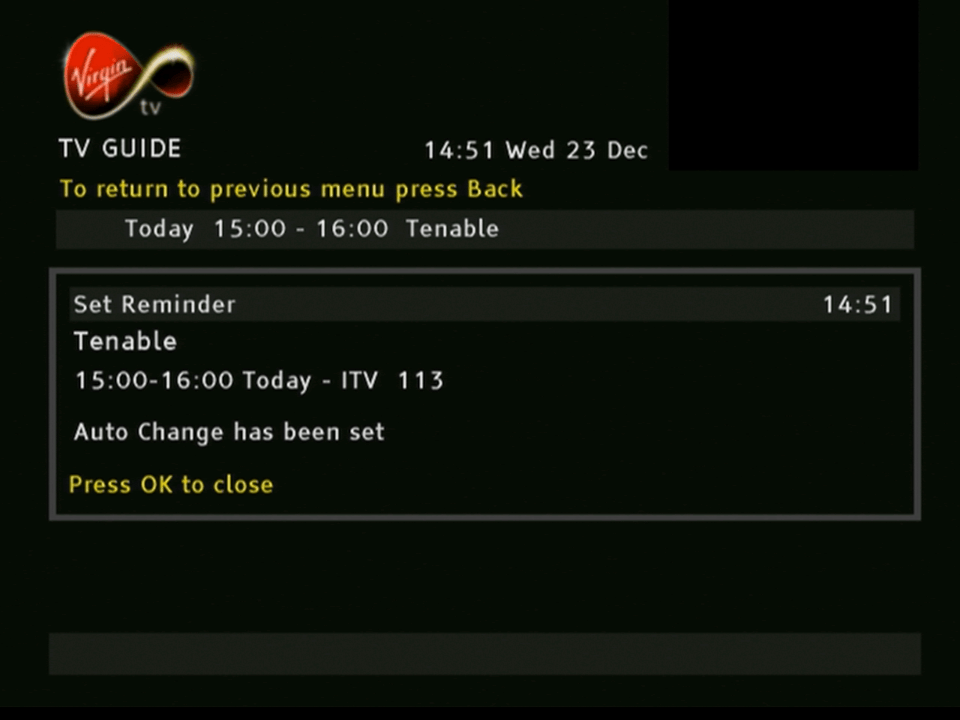

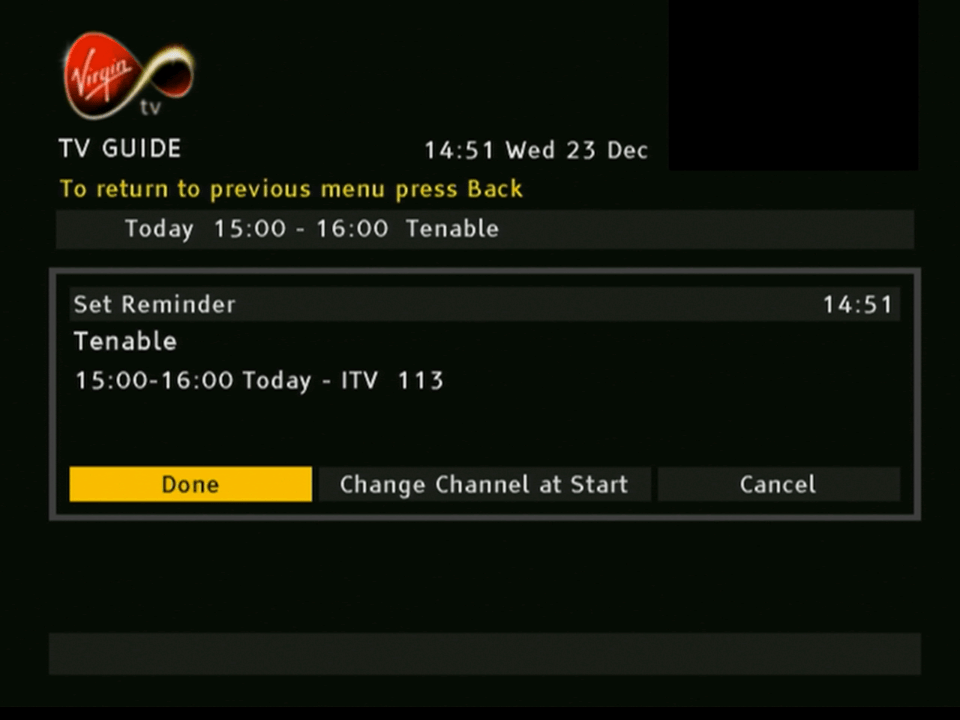

Setting a reminder, similar to adding a programme to the personal planner on Sky

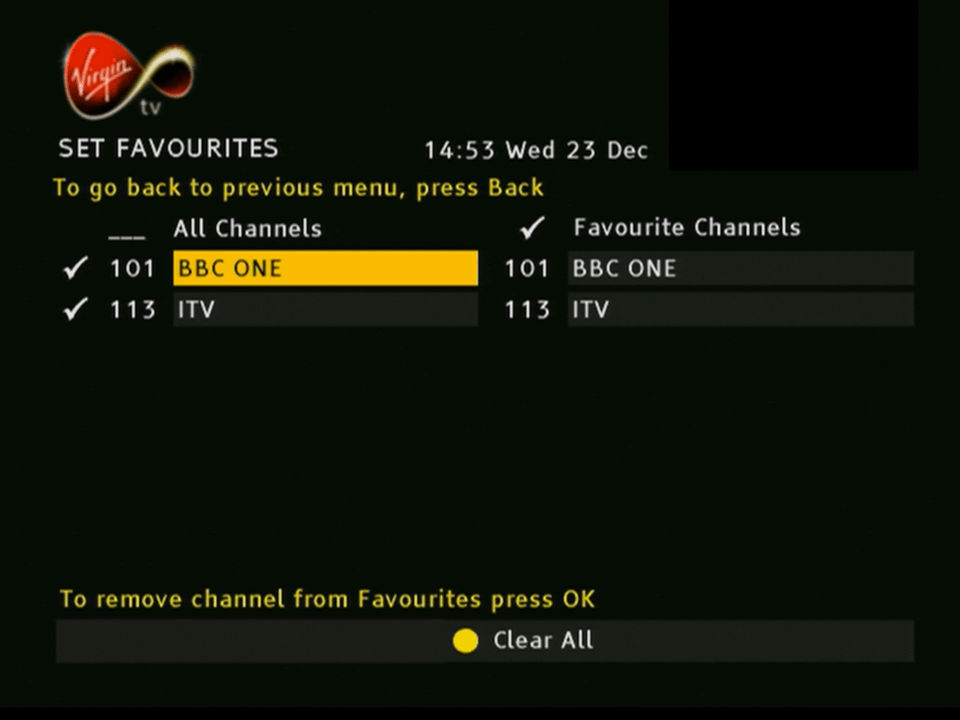

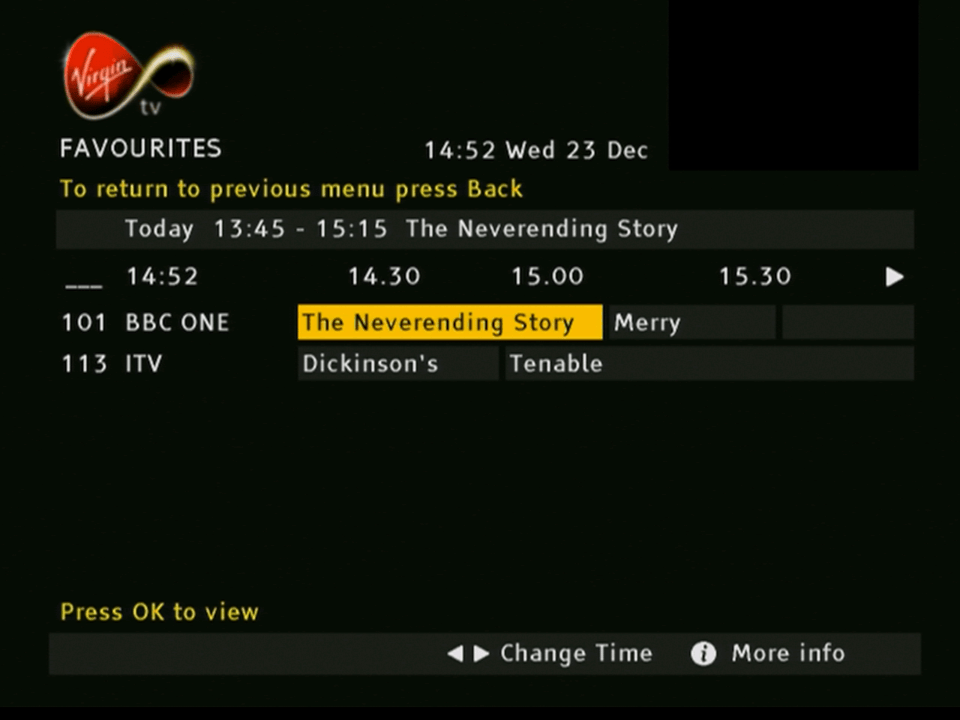

The favorites guide, channels you mark as favorite appear here

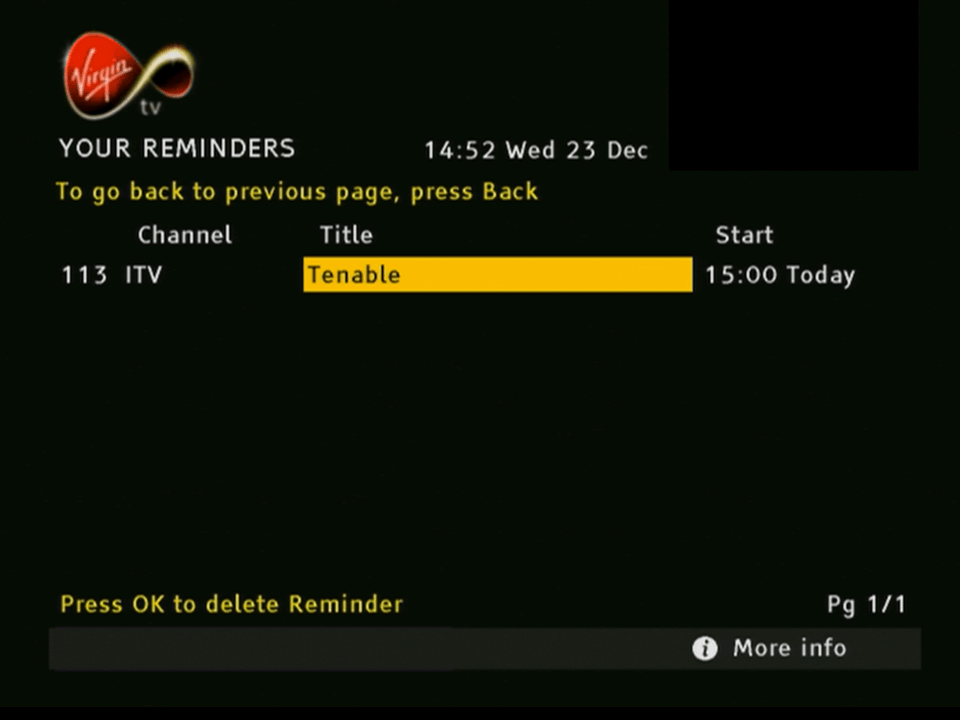

The reminders section, similar to the personal planner on Sky Digital

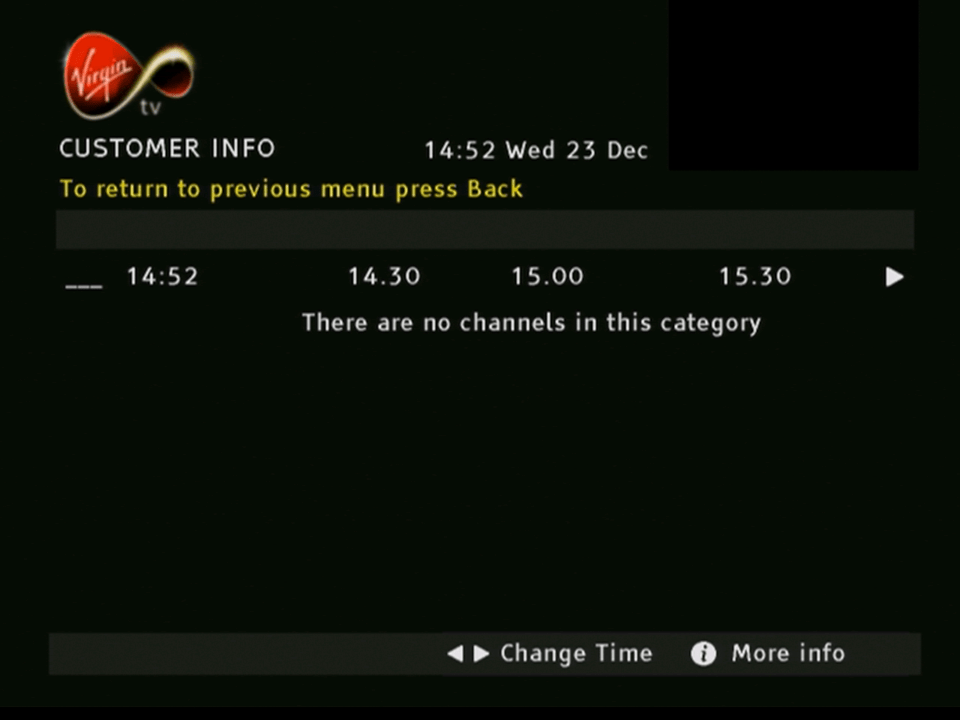

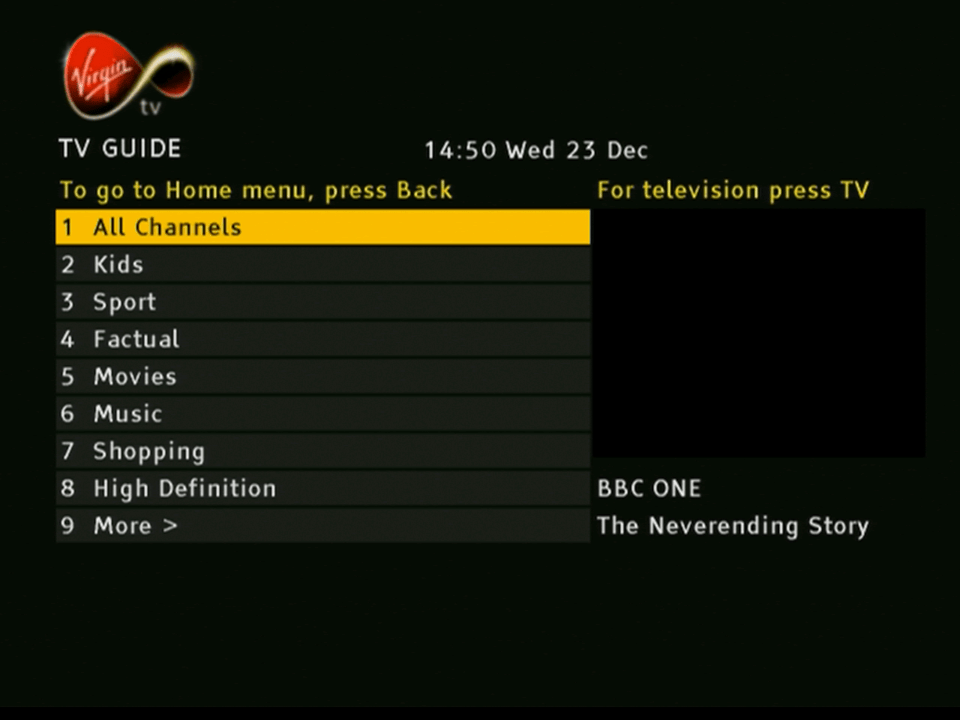

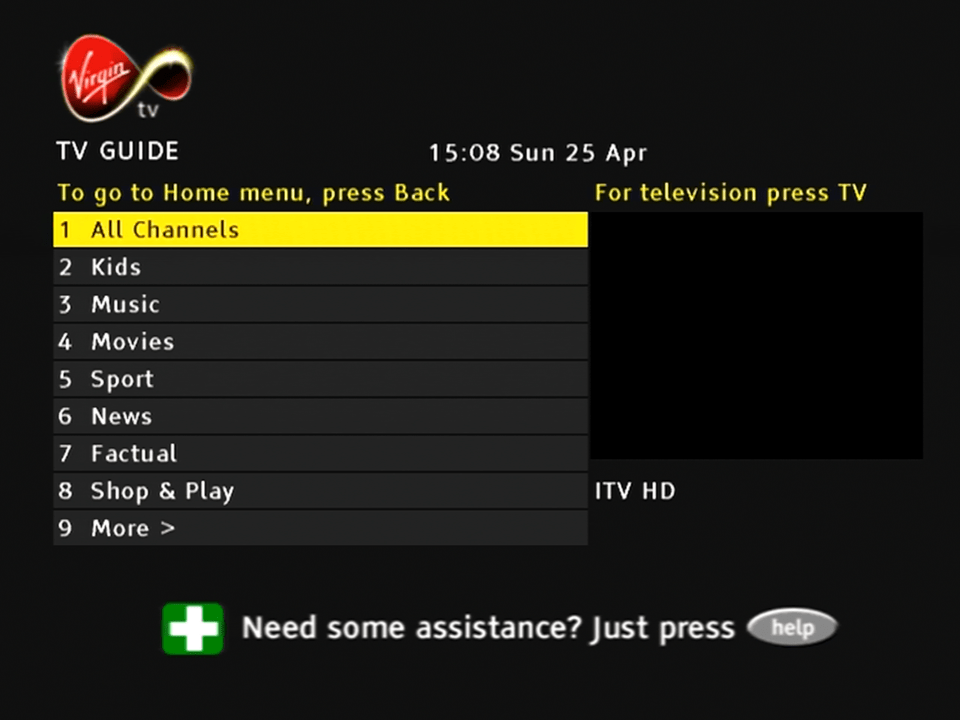

Sorting channels by genre

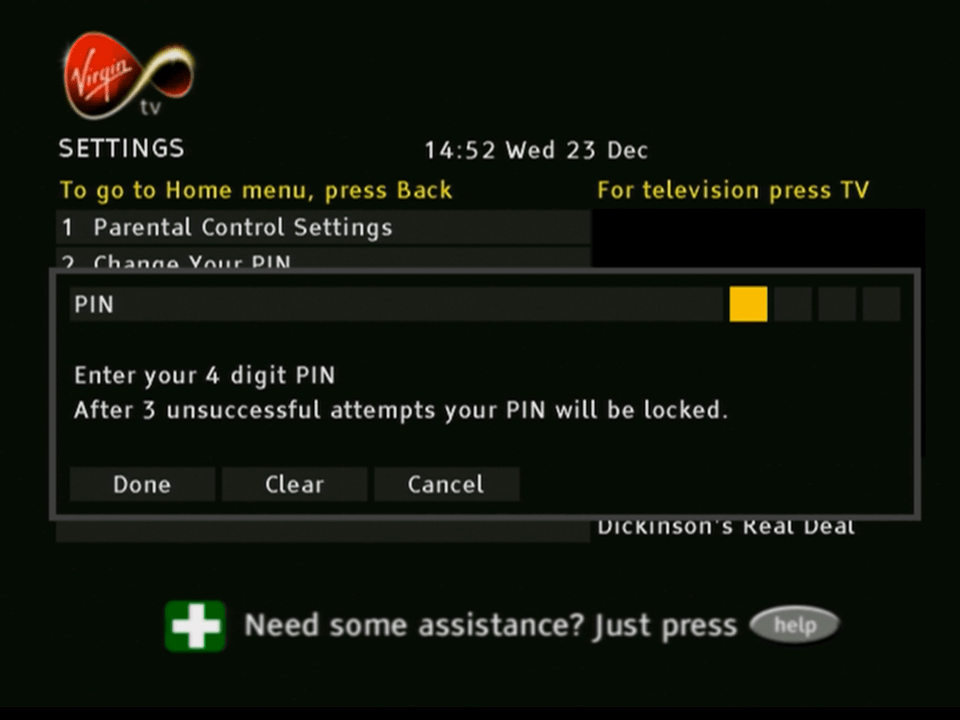

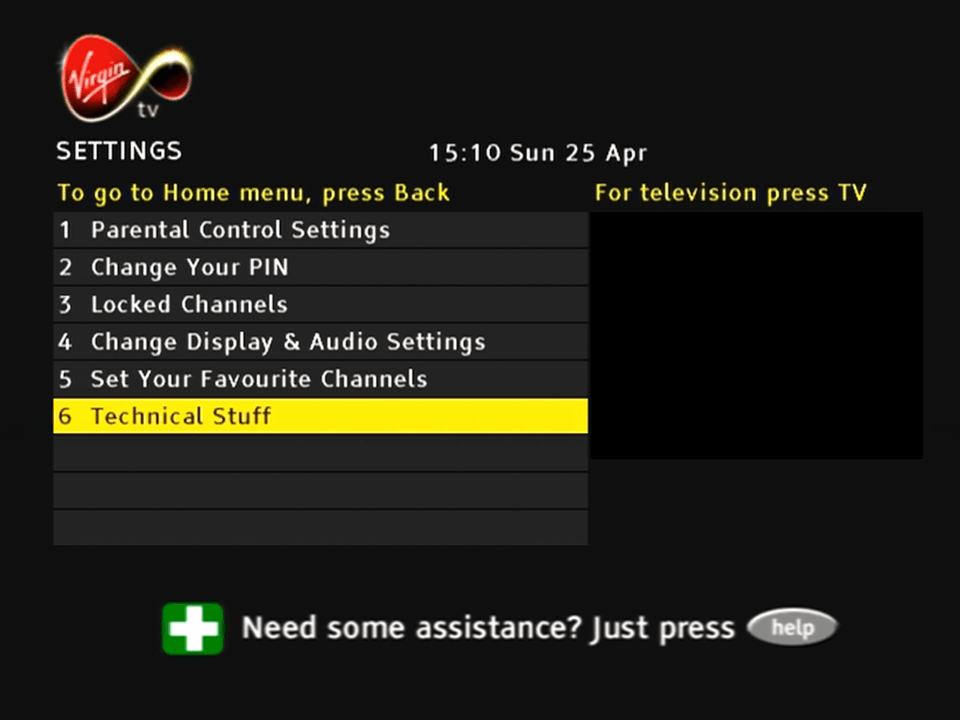

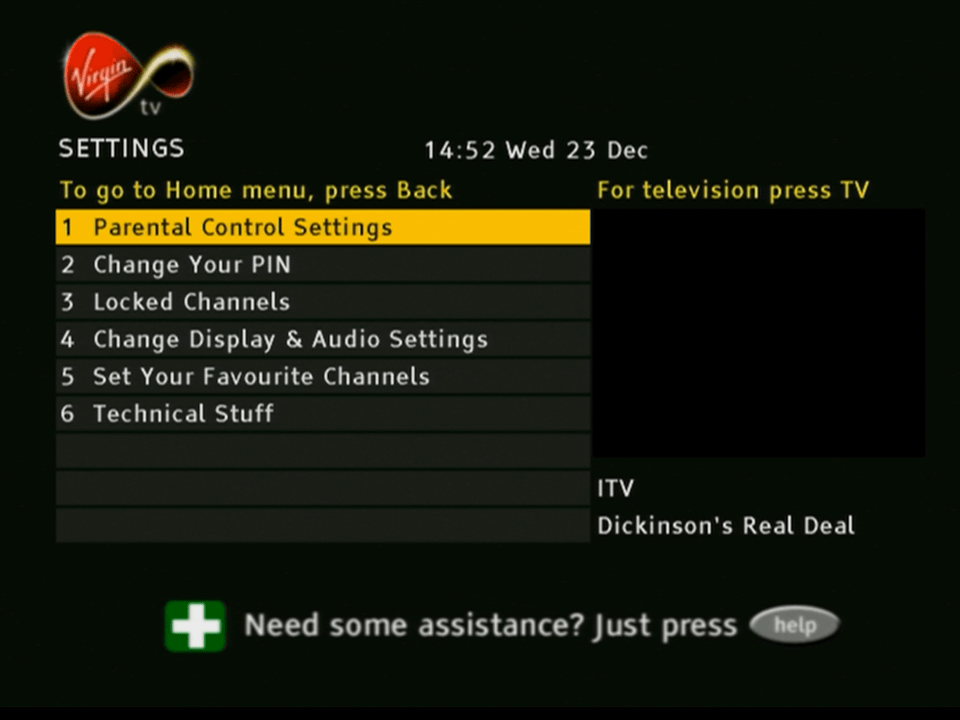

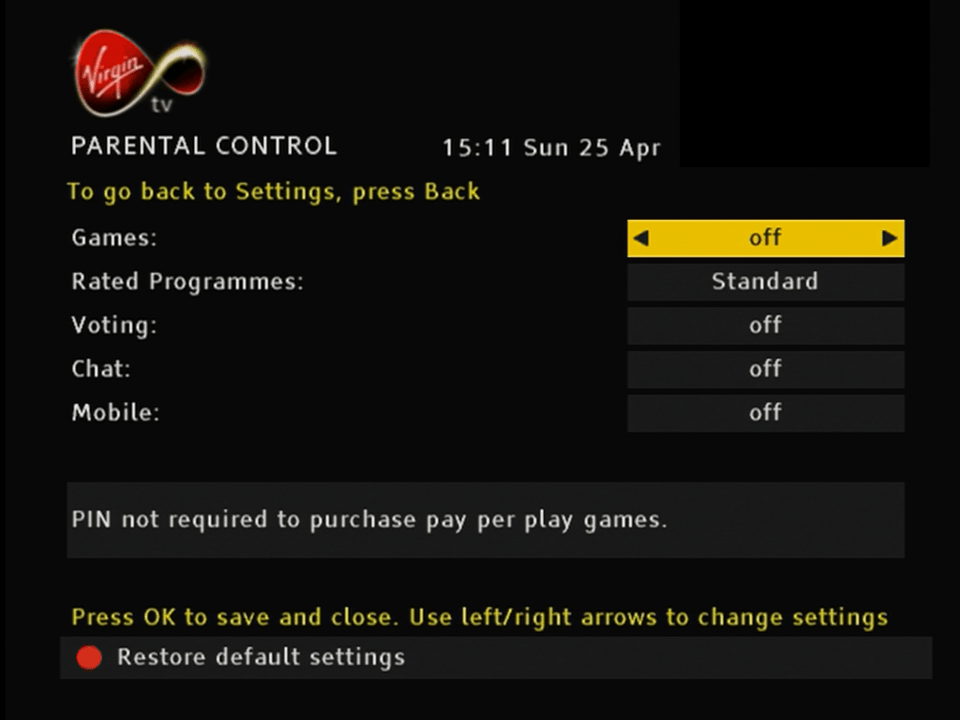

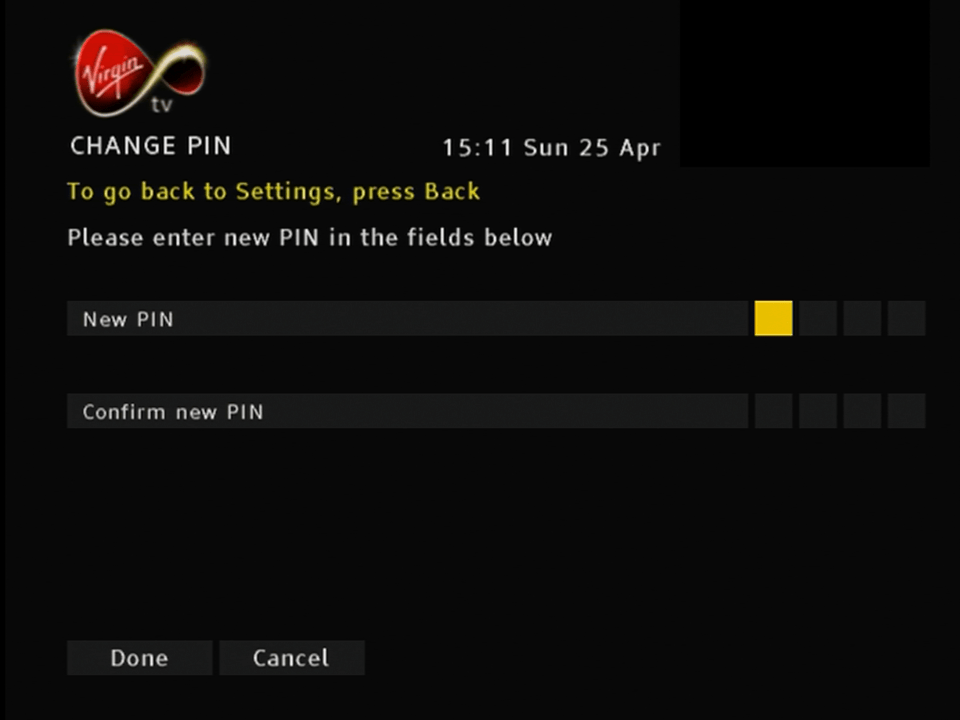

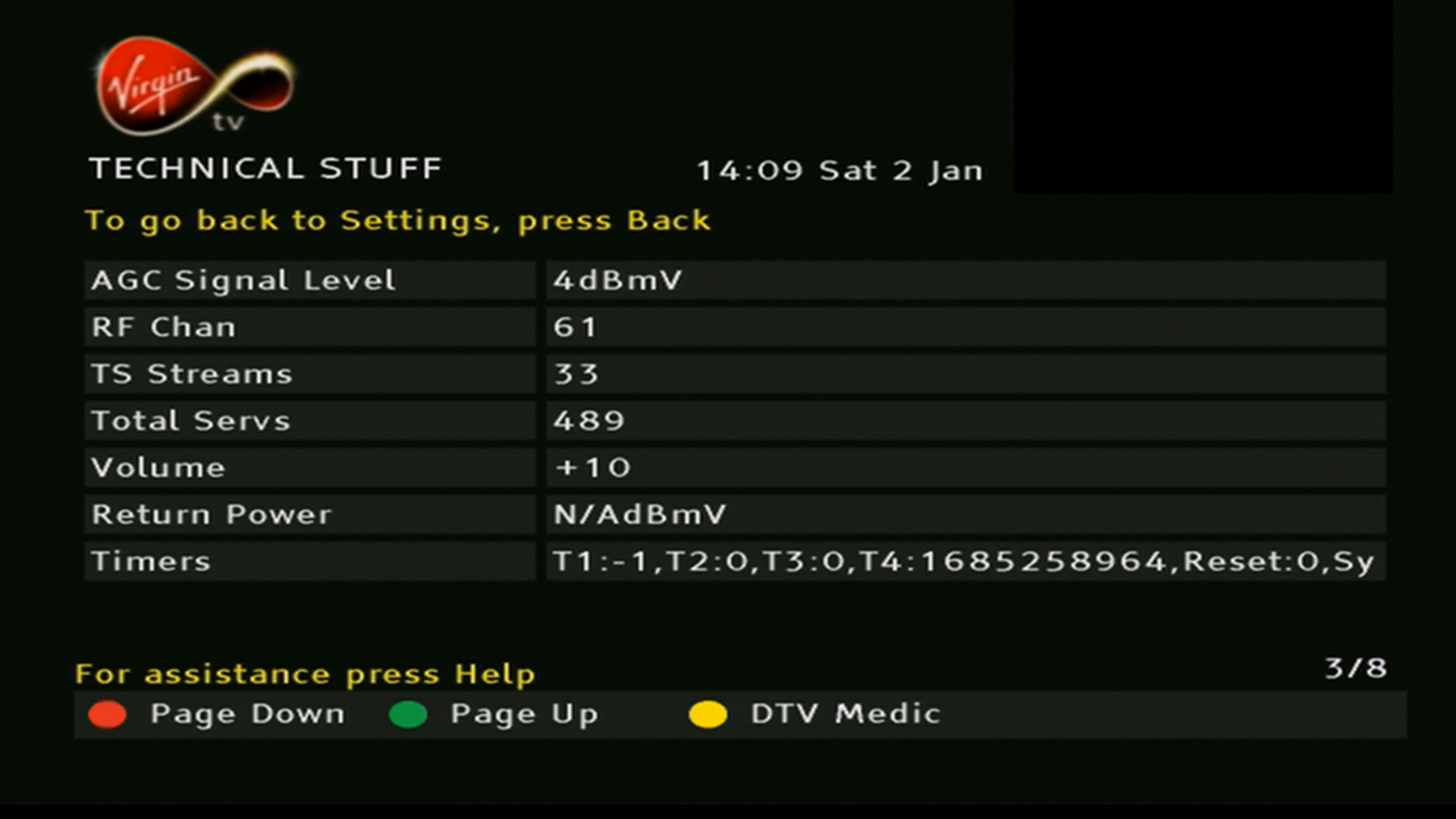

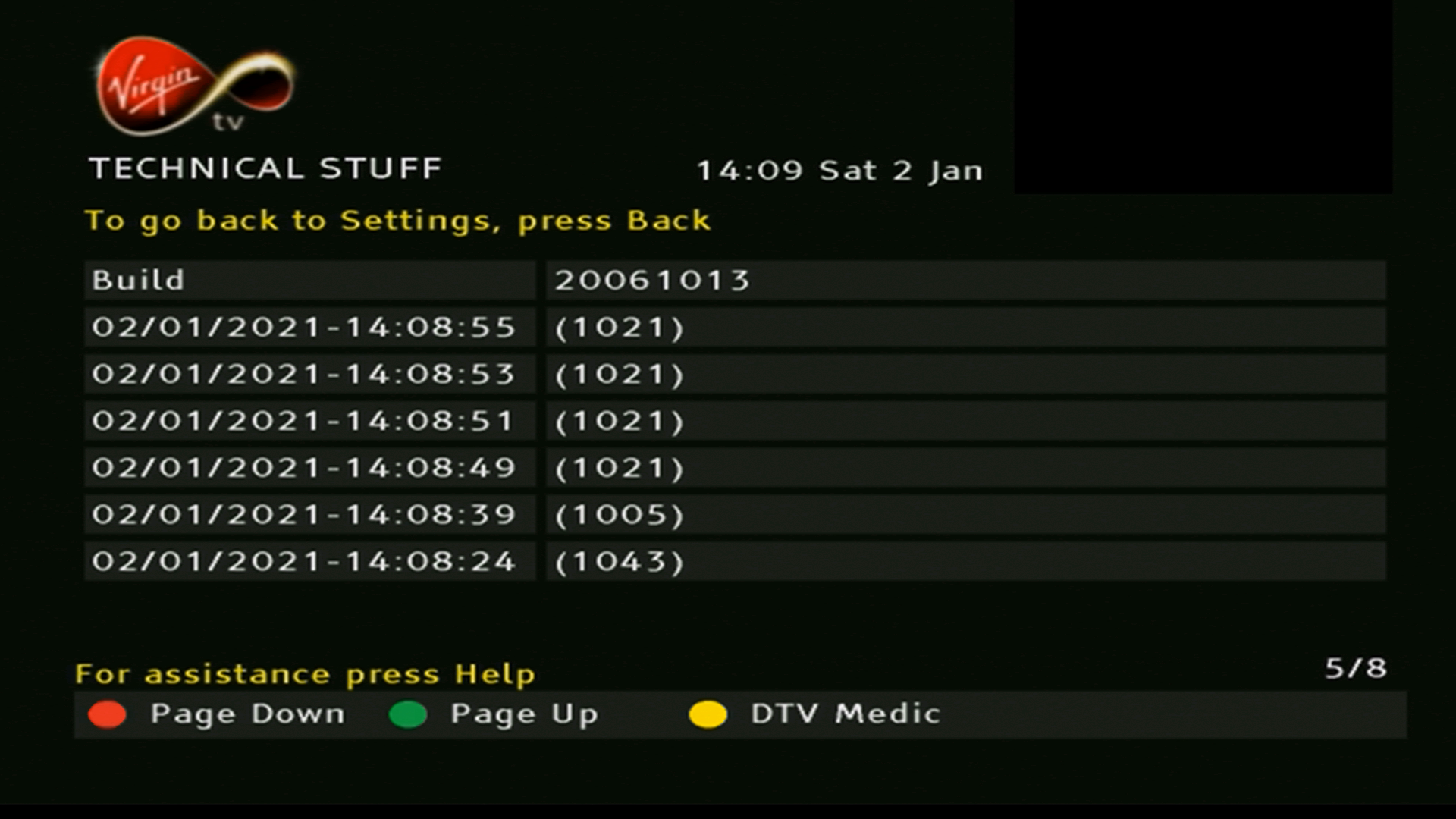

Settings

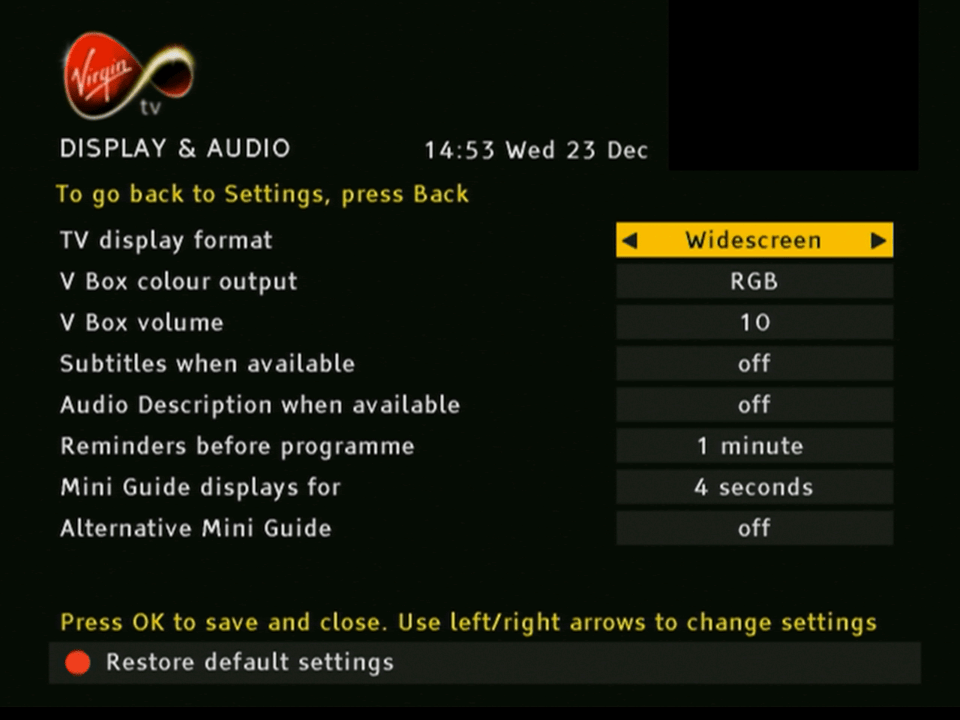

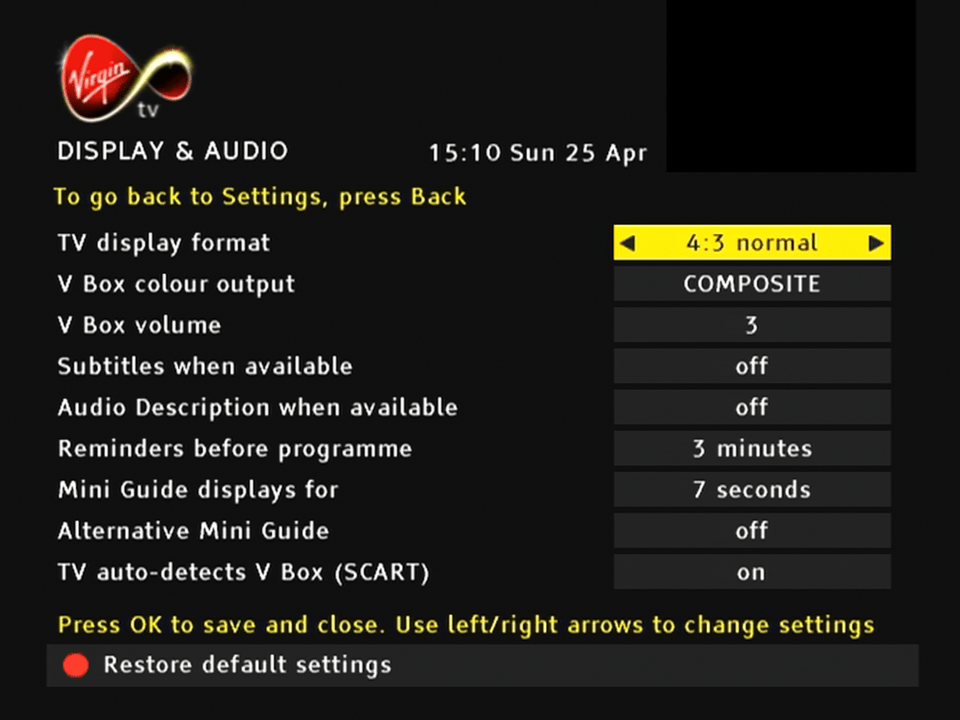

Box supports RGB and composite over scart, and has a widescreen option. The EPG does not run in widescreen mode however.

OnDemand and Interactive

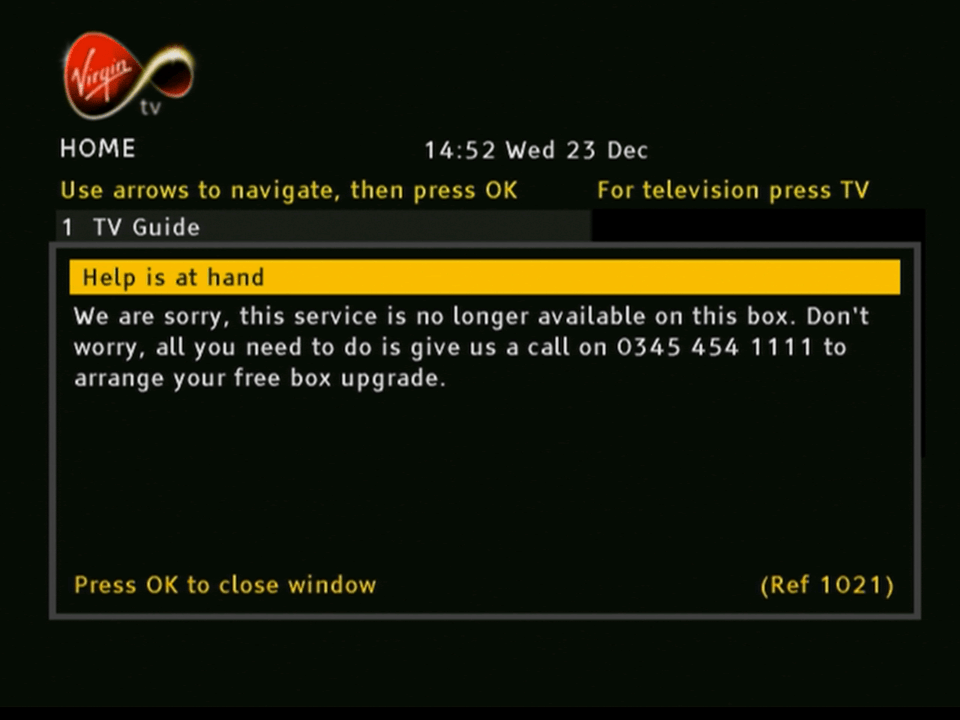

Press F to pay Respect… or OK. I guess most of the liberate interactive stuff has been removed

General Use

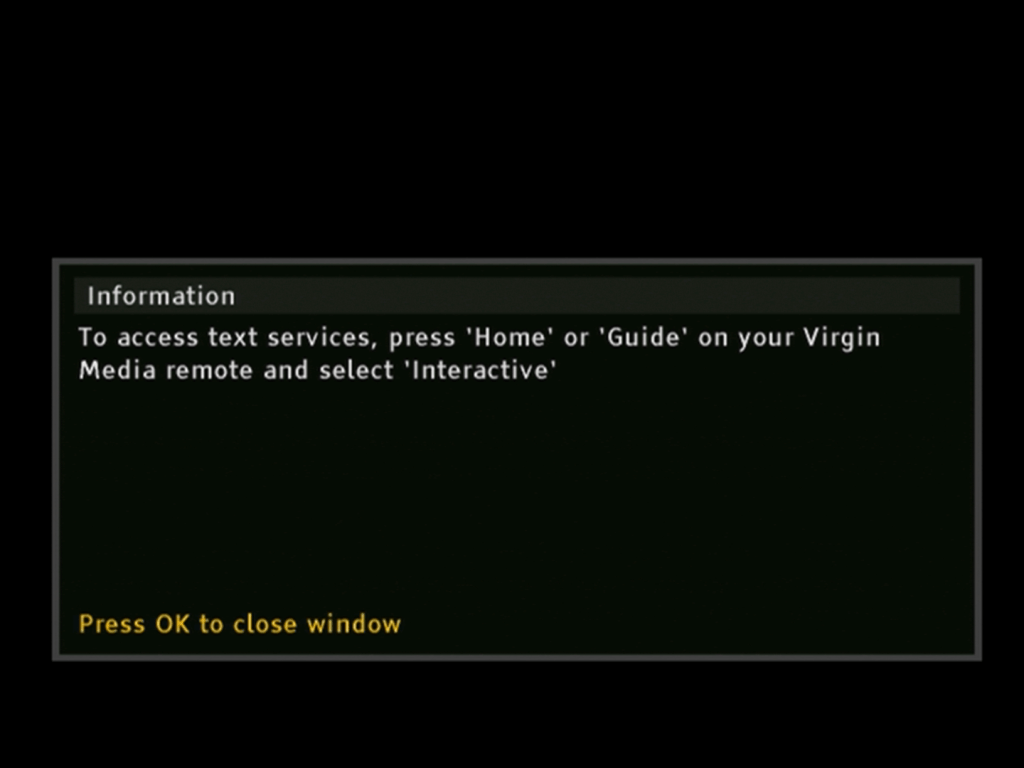

For years Telewest customers were promised the launch of digital text services that could be activated by the text button. Eventually they just gave up

Help

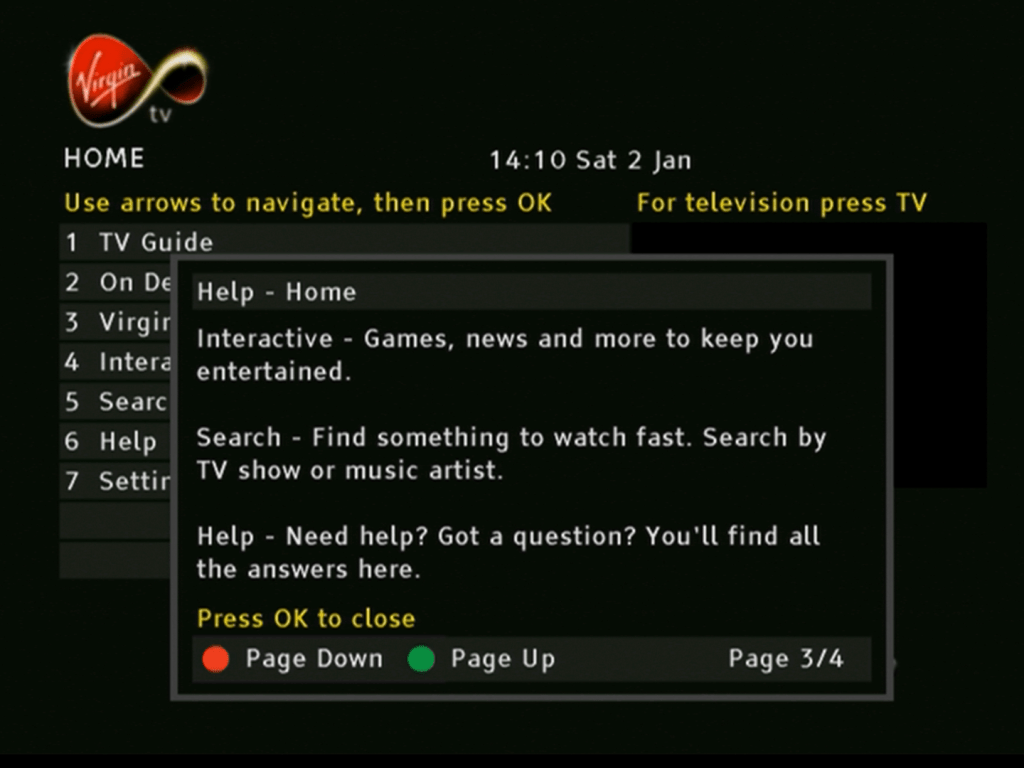

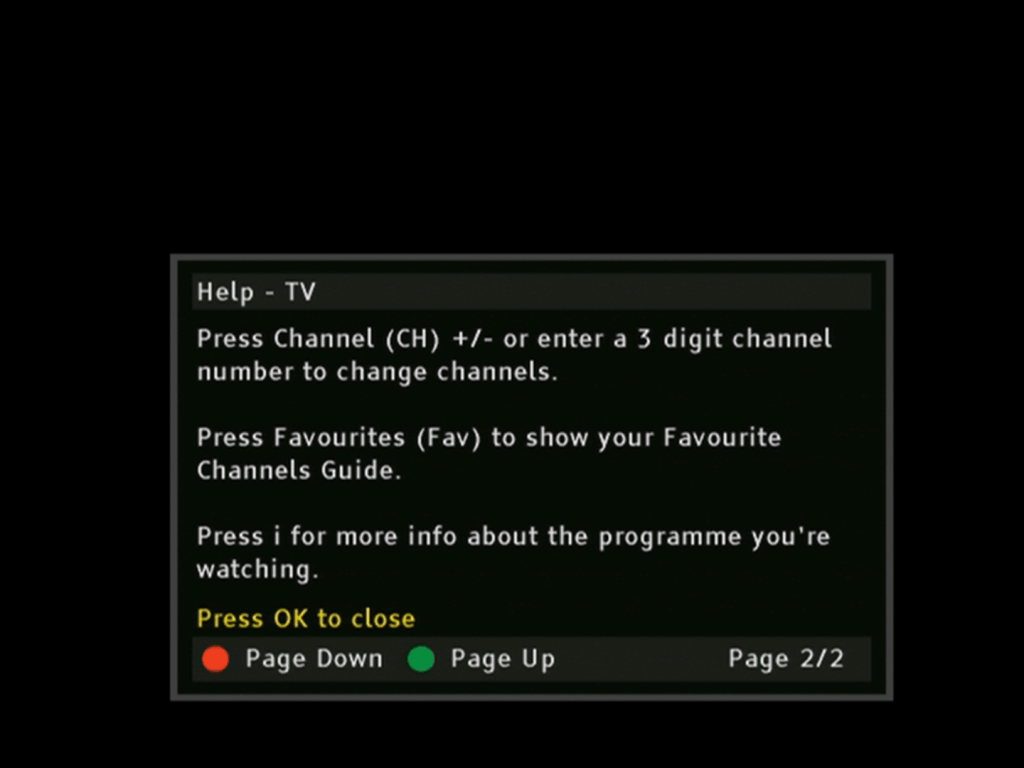

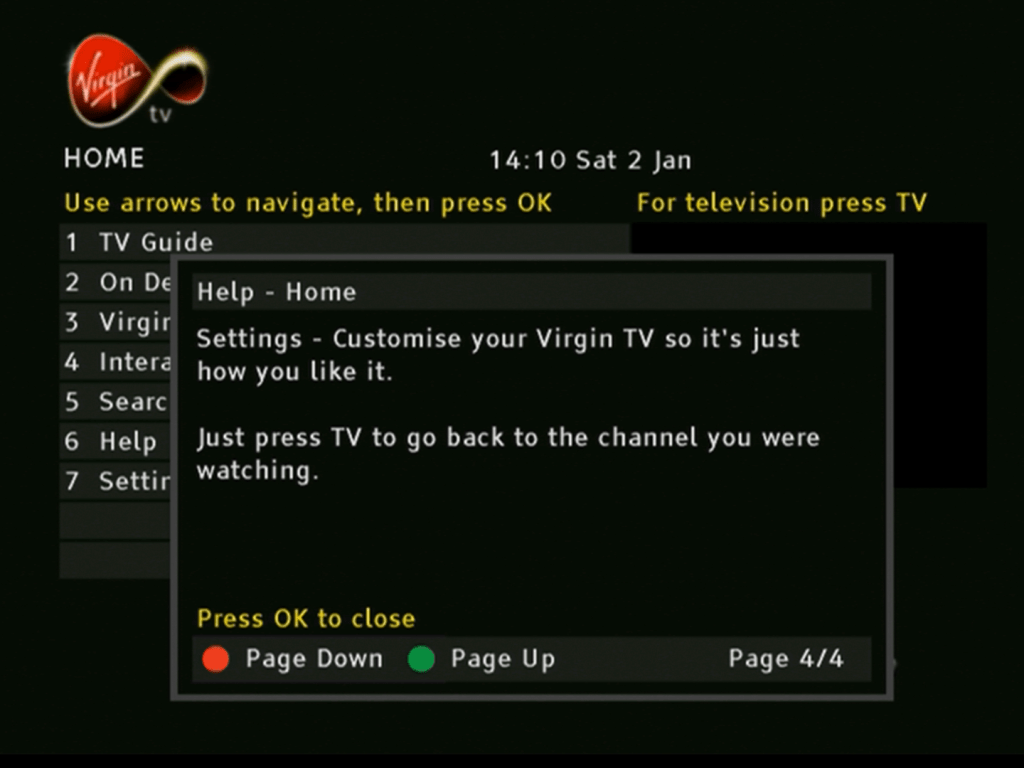

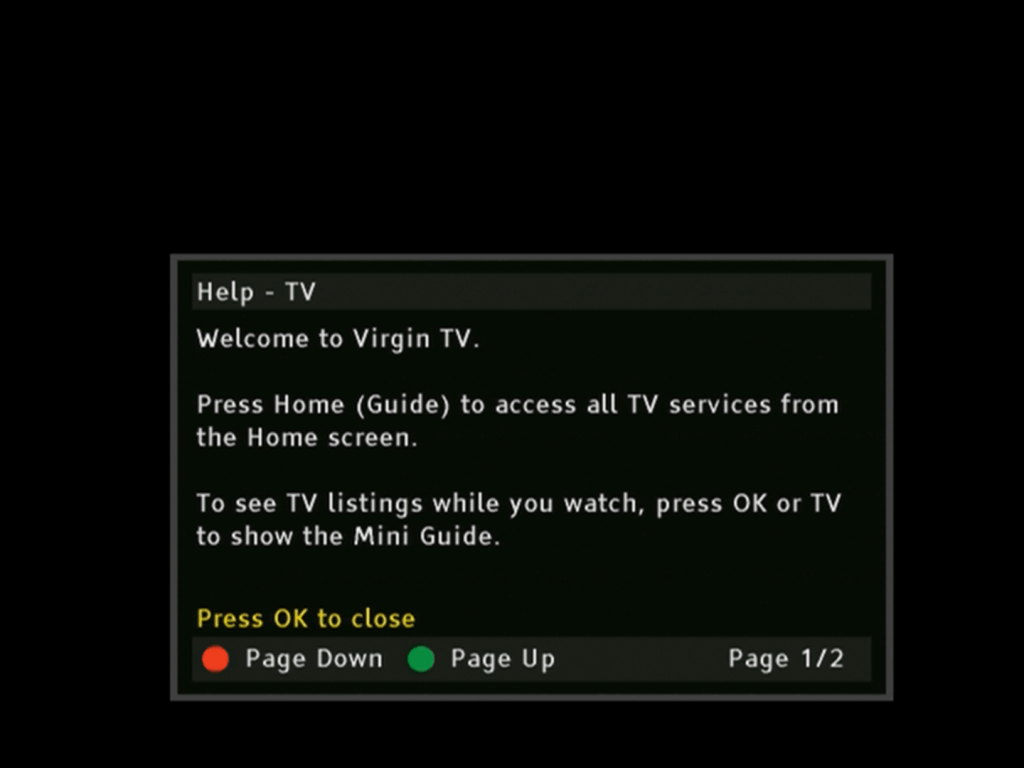

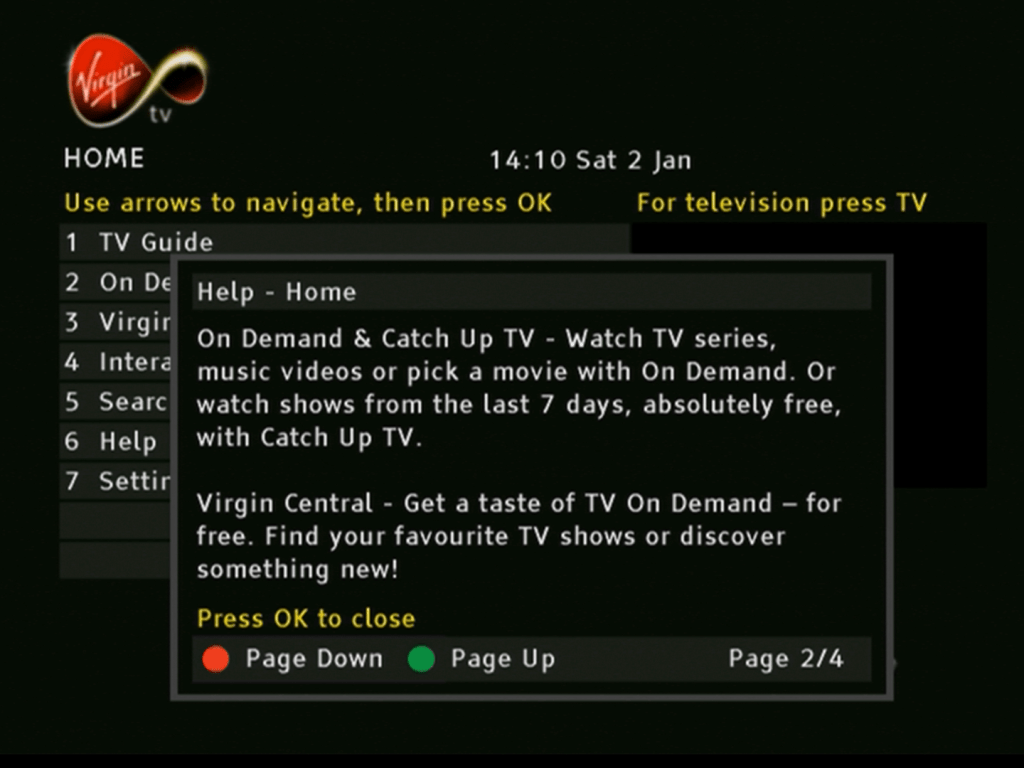

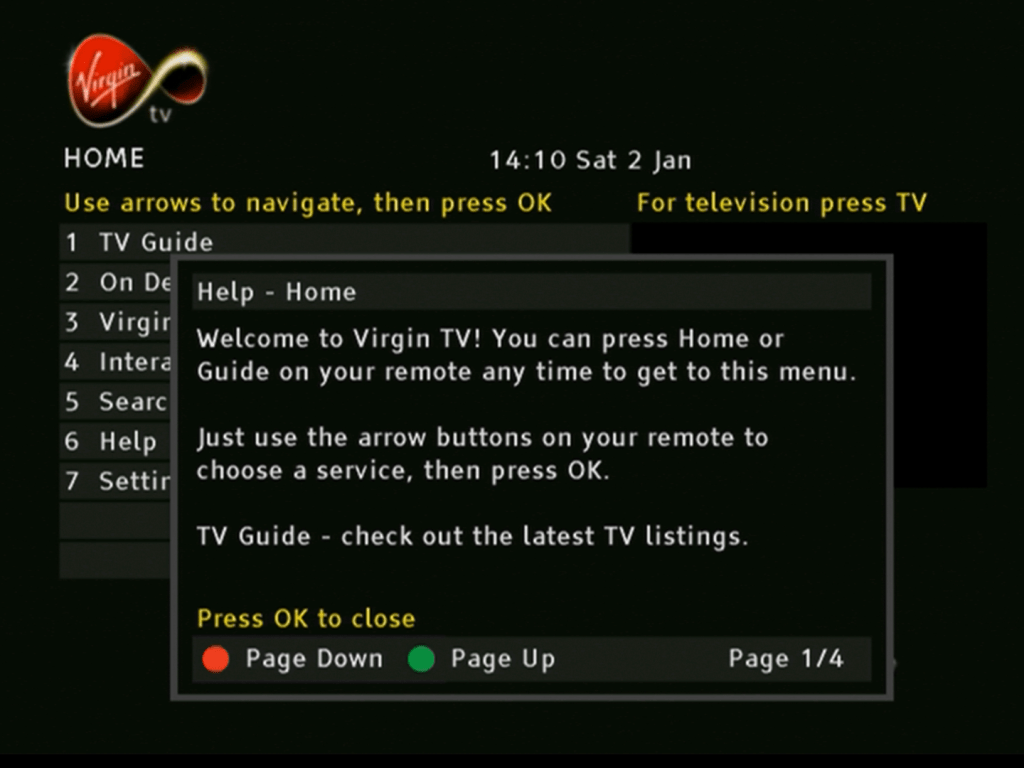

Pressing the Help button brings up a short guide that mentions most of the common features

Earlier Build

Diag Screens

Kind of like the BIOS of a PC where you can change certain settings like the default frequency. To access it hold down the Up and Down buttons on the front panel of the box whilst it is booting up (whilst -un- appears on the front display). DIAG will then appear on the front

The only thing you can change here is the default frequency parameters. and the RF output.

Inside the box

I’m not sure how similar our 4200DVB is to the American version of the 4200. I guess the CPU chip set might be the same but the software will defiantly be different, since Scientific Atlanta have their own Operating System and middle-ware stack, whereas Virgin use Liberate TV Navigator for their software. Then there’s the DOCSIS modem compared to the DAVIC based one in the American version, and the different encryption systems (Nagravision vs PowerKey)

The internals are similar to the Di4000. One thing I have noticed with Scientific Atlanta boxes is they always mount the PSU on the side. I’m not sure if this allows for better heat dissipation since there are vents underneath the box. The tuner module is huge and takes up a lot of room on the main board.

The CPU (right) with the cable modem coprocessor (left). The CPU seems to be a customized chip for Scientific Atlanta and is designed by ST. This may indicate the CPU core being ST20 based, since many ST chips used that core in various satellite receivers, including Sky Digibox’s. As with modern designs, the main processors integrates the CPU, MPEG2 decoder, CA descrambler and graphics core on the same chip. In terms of memory, the box has 32MB of RAM and 8MB of flash, same as the Pace Di4000T.

The IO is standard for many cable boxes of the era, although this model drops the USB port, and the RF loop through has been removed. The earlier Pace Telewest boxes had an RF loop through that would modulate the STB signal onto a spare RF channel, whilst this box does the same, you cant loop the antenna feed through it, wither a combiner or diplexer device would be needed. Assuming you even wanted to use RF, most customers would use the scart connecter with the RF being used to feed a second TV. I’m not sure if the box feeds the analogue cable channels though the RF out, but since this box was released in 2004 and Telewest were already planning to shut of the analogue feed it’s unlikely.

At least there’s an Optical audio out along with analogue out, which the Di4000 boxes dropped, and the mysterious IR blaster connector.

Front view of the STB, the panel is based on the Scientific Atlanta 4250 design.

Updating System Software

To force a software update, power off the box, hold Power and Ok whilst powering the box on

It’s nice they used Wordart in their software update screens
