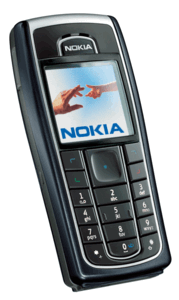

The 6230 was one of the major milestones when it came to multimedia handsets of 2004, whilst it lacked 3G network support, it made up for it with its 2G EDGE and Bluetooth support which allows for file transfers with other handsets that support it. A TFT colour display is offered which supports up to 65536 colours, but is stuck with the low resolution of 128×128. Marketed and sold as a business-class phone, which meant it included an email client and a calendar that could sync with an external server. A VGA resolution camera is included which is capable of capturing video.

The 6230 was another example of Nokia’s flagship handsets of the time and incorporated all of the common characteristics of Nokia, including exchangeable covers, a lanyard, and a hands-free port.

There are three soft keys, left, middle and right which can be used to activate certain functions depending on what’s displayed on the screen. The middle soft key is typically the select button, which is commonly used to confirm and enter menus. The left/right buttons are commonly used to go back or display an option/list menu.
Lastly, you have the common Send/End keys, also known as green/red phone keys.

Nokia would later continue to enhance the 6230 with the 6230i, which adds a larger screen, better camera and more storage, whilst sticking with the popular form factor.

Homescreen

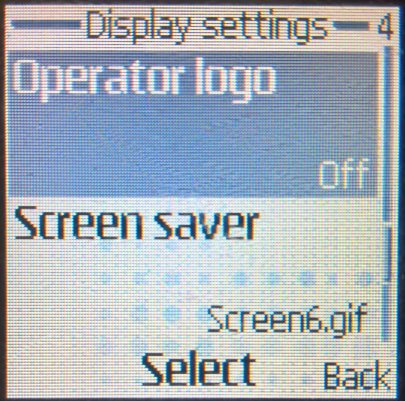

This will look familiar to anyone who has used Nokia S40 phones in the past, with the signal and battery power meters on the left and right respectively, along with the network operator in the middle, which can be replaced with an operator logo if one is provided (very few actually did this).

The directional keys can be used as shortcuts to common menu items, like pressing the up button opens the camera, left will open the SMS message composer.

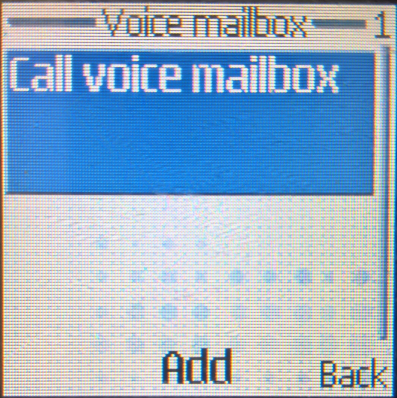

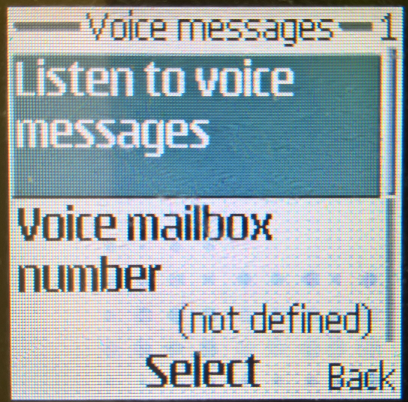

Speed dialing can be activated by pressing and holding down a key, which will dial out the contact number assigned to it. 1 will always dial out the voicemail number.

Menu Navigation

The 6230 uses the Series 40 platform, but with an updated icon set, still the menu layout remains the same as previous models.

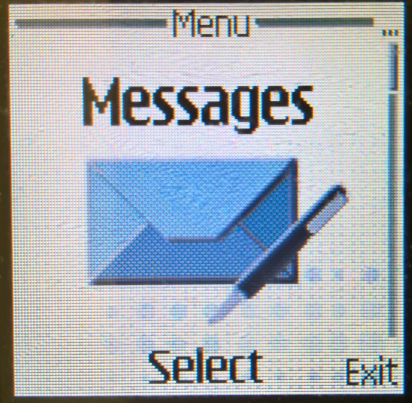

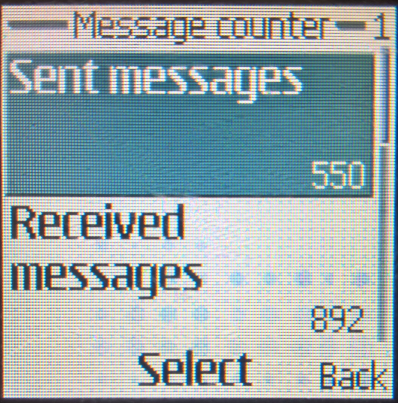

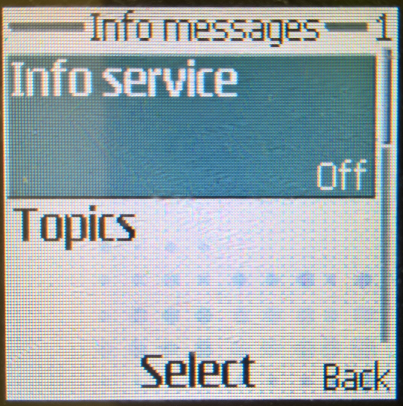

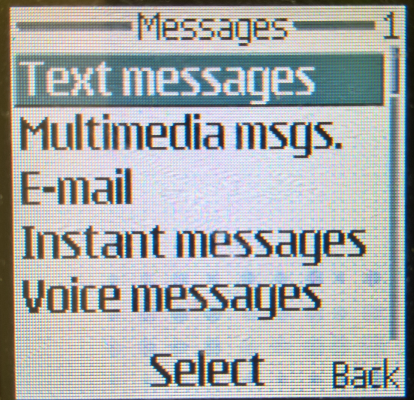

Messages

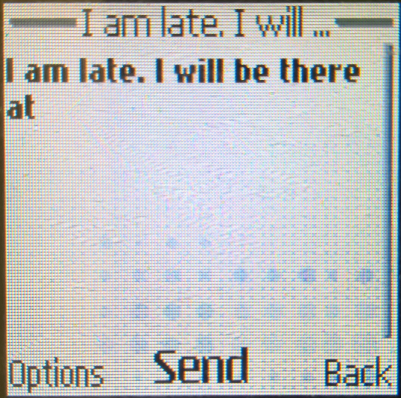

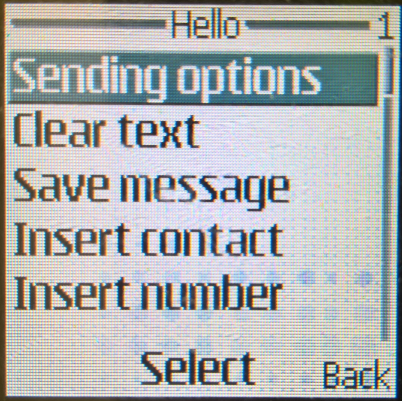

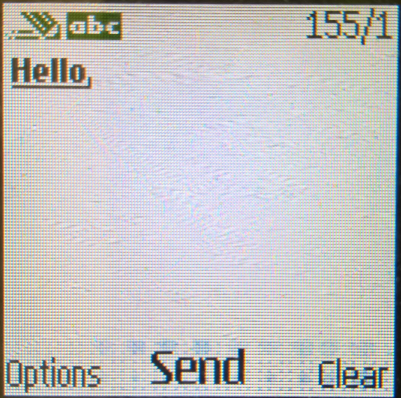

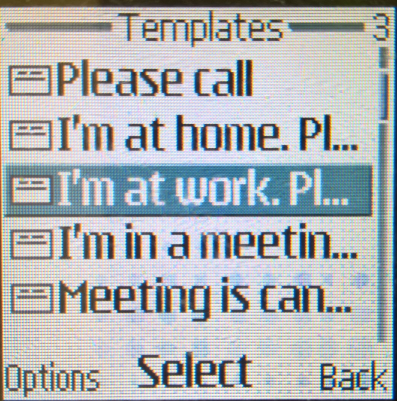

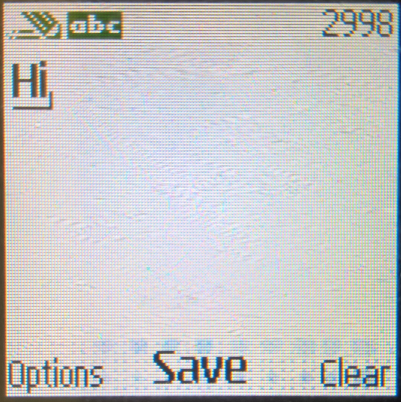

Here you can create and send SMS text messages, or compose one using the built-in templates offered. Received messages can be entered into custom folders for long-term keeping.
There is also a distribution list for when you want to spam multiple contacts with the same message, you simply enter the numbers to send the message to or select from your phonebook, and your message will be set to multiple recipients. Useful for making an announcement or sending the same message to multiple contacts frequently.

Nokia smart messaging is supported, which allows sending and receiving of ringtones and black/white static images to other supported handsets (commonly Nokia) but also with some Samsung/LG/Motorola. There are 10 templates that have been included with the handset that can be sent.

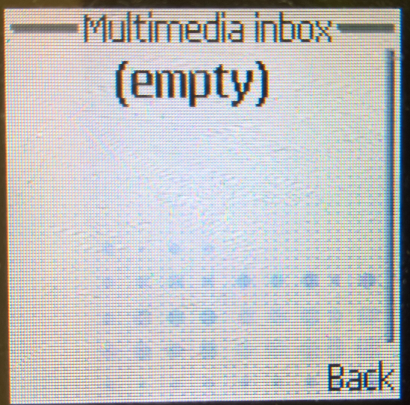

EMS is not supported. Instead MMS is supported, which allows for photos and small audio clips to be sent using the phones data connection. Up to 100kb can be attached to a single MMS file.

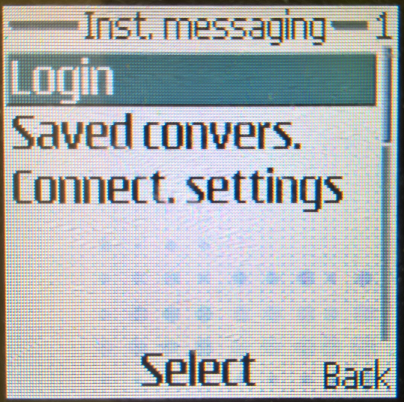

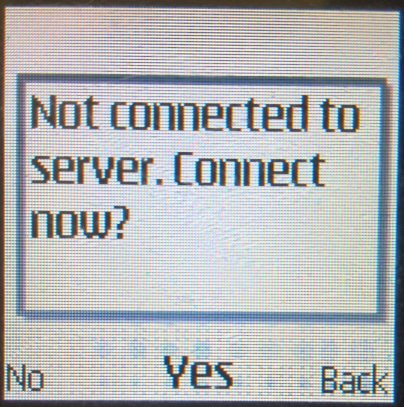

There is an option or instant messaging, where it requires connecting to an instant messaging client. Possibly you could use this for AIM or MSN Messenger, but I believe these services required you to use their own mobile clients. Possibly this was intended to be used by the network provided instead, although it may only function for users on the same mobile network.
I don’t think any network providers in the Uk made use of the feature.

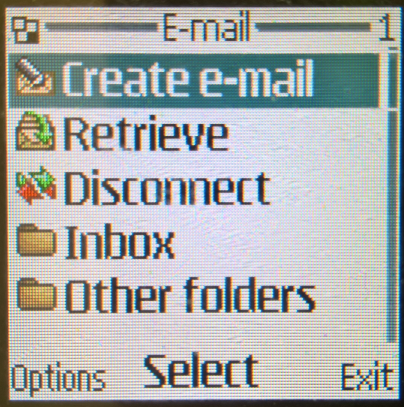

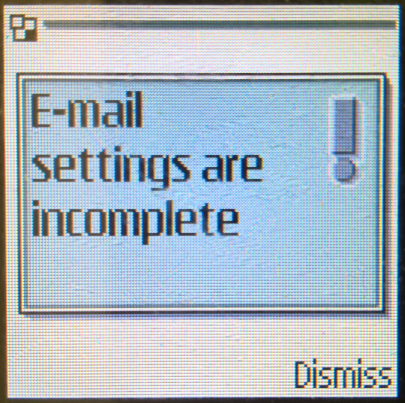

Lastly, there is also a built-in email client which supports POP3 and SMTP protocols which were commonly used in that time. However, it is very limited, which no support for attachments

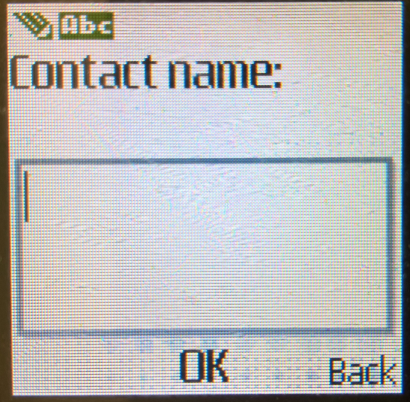

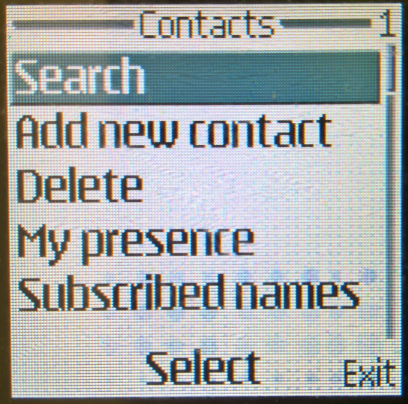

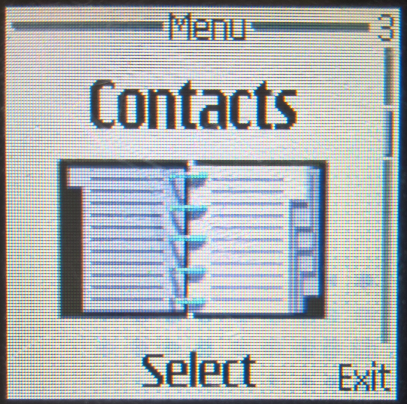

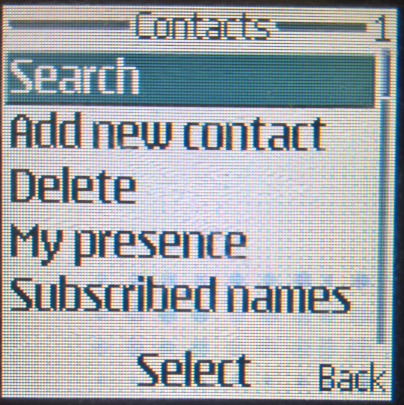

Contacts

The Phonebook, up to 1000 entries can be saved to the internal memory, with a little more being saved to the SIM card. Contacts stored in the phone memory can have additional information assigned to it, such as the email address, home/landline number, fax number, office/work, and a photo of the contact assigned, which will appear onscreen when the contact shows. If a contact has multiple numbers assigned to it, the first number entered will be the default contact used.

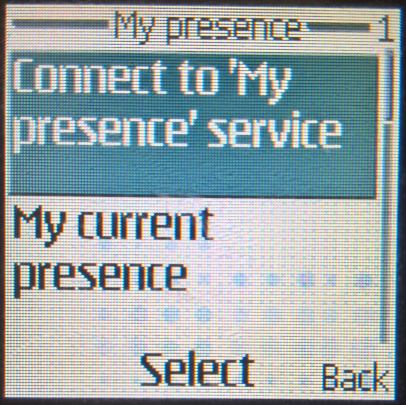

A presence service is supported, which lets you know if any contacts are available directly for chat, im not sure how this works exactly, if it uses some obscure GSM protocol to achieve this, but it was not widely used.
As mentioned earlier, the contact’s photo can be st to appear when the contact calls, although you are limited to using a portrait version of the contact, and its still hard to make out due to the low size and resolution of the display. Plus you are limited to 100 contacts that can have a photo assigned to them,
Contacts can slo be assigned to groups, upto 5 in total are supported. Each group can have its own custom ringtones.

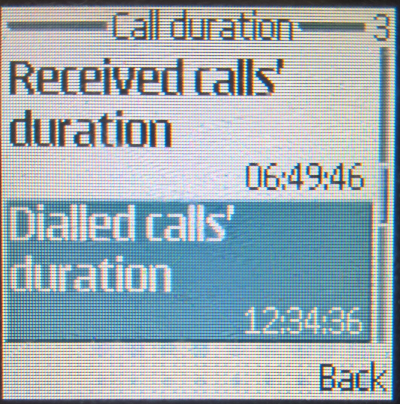

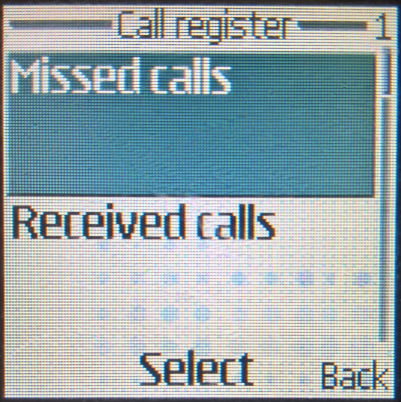

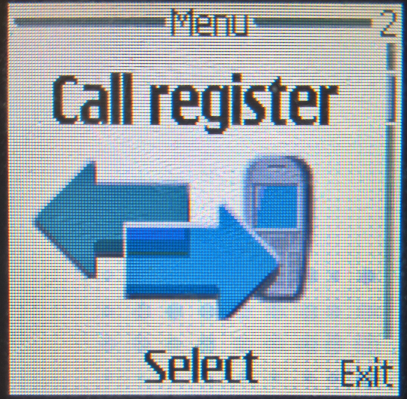

Call Register

Three lists are stored here, each for received, dialed and missed calls. Each list can save up to 20 entries and will show the date/time of the call. You can also press the green call button from the idle screen to show the recently dialed numbers.

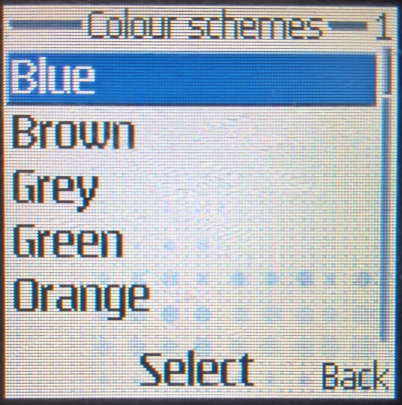

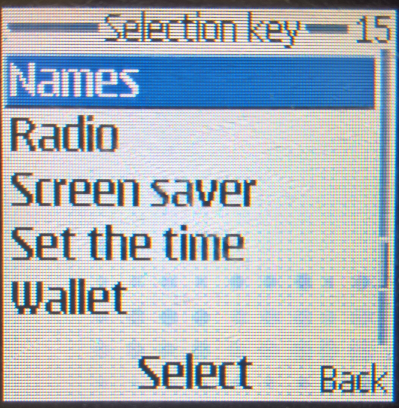

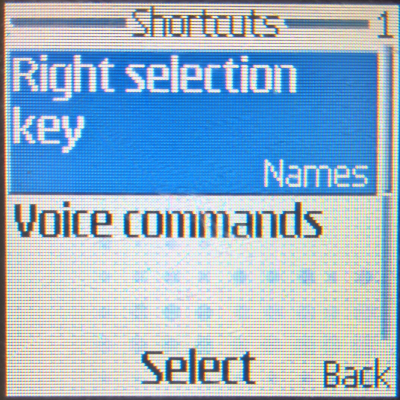

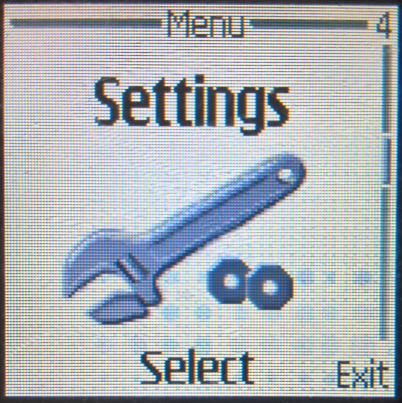

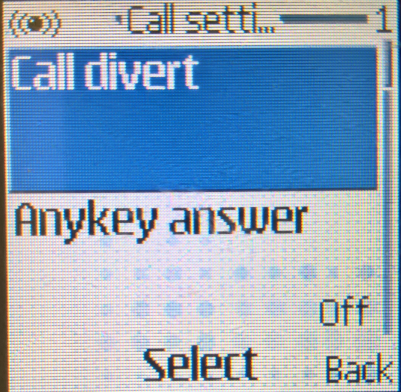

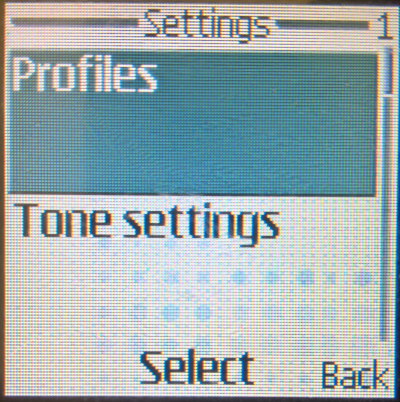

Settings

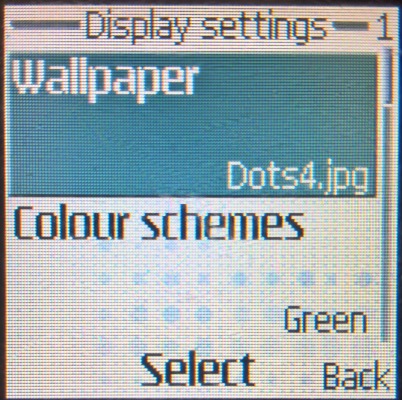

This section remains largely unchanged from the previous models, but there are some new options to take advantage of the added functionality

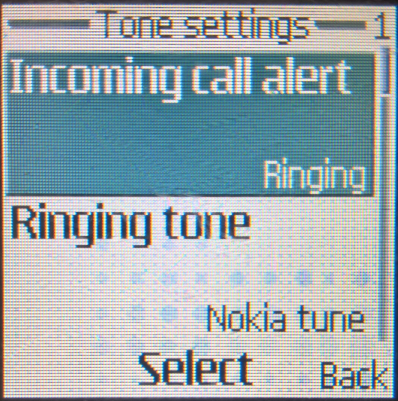

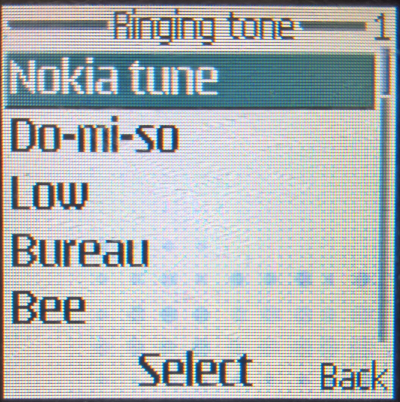

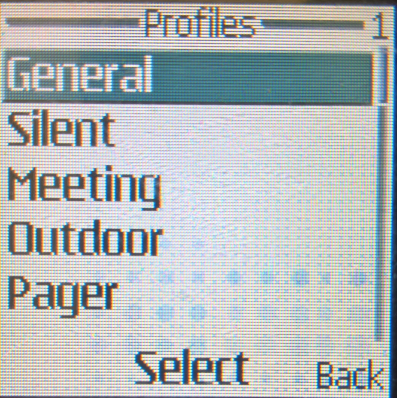

Profiles: Phone profiles can be set and configured from there, you can also access this by pressing the power button, located at the top of the handset.

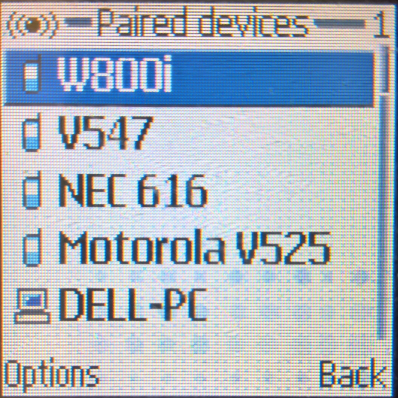

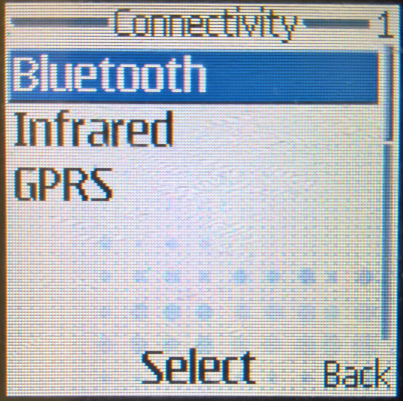

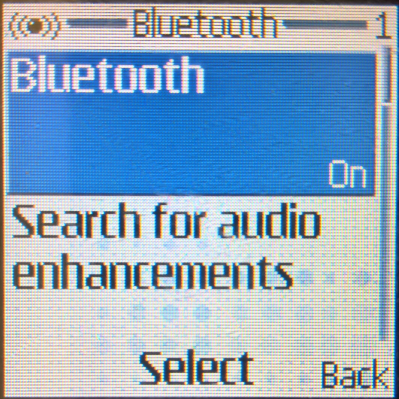

Communication: lets you access the Bluetooth, IrDA (Infra-Red) and GPRS sync settings. For Bluetooth you can set the device to be discoverable, view any previously paired devices and set devices to connect without any confirmation required.
The support of both Bluetooth and Irda is useful, as many laptops lacked Bluetooth support, but included Infrared support for data exchange. With additional software like Nokia PC Suite, you could use the GPRS connection to connect to the internet.

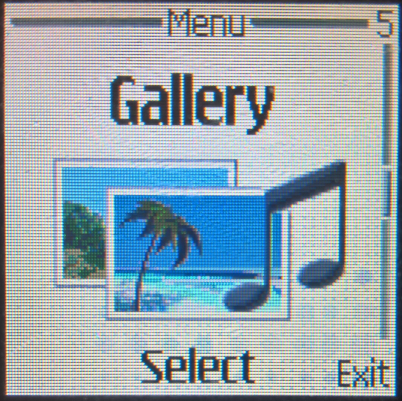

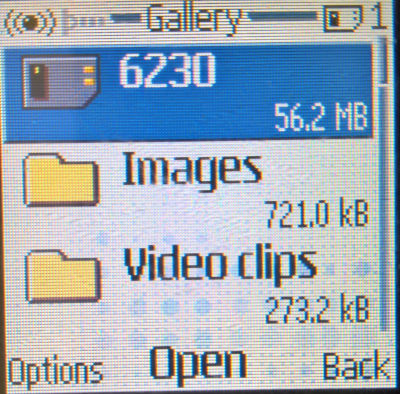

Gallery

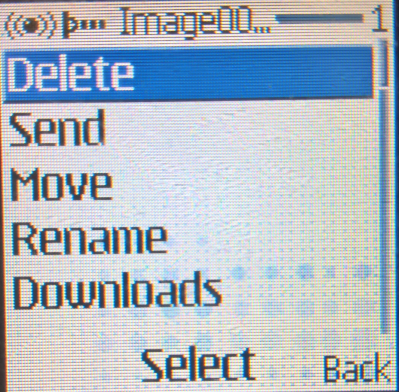

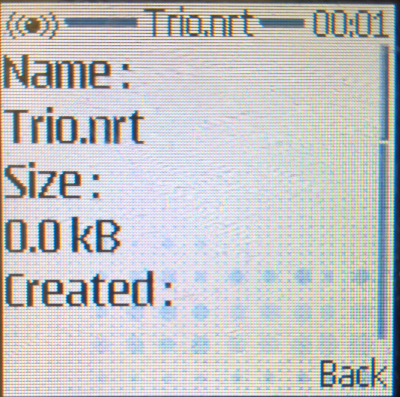

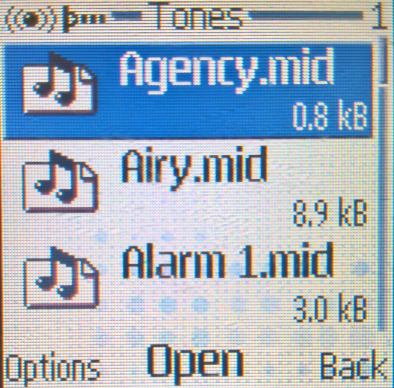

The file manager, here you can view any photos captured by the camera, or any of the ringtones and default wallpapers.

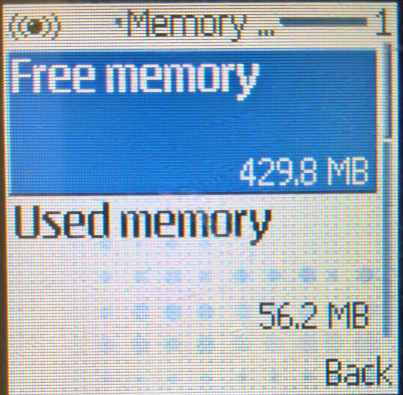

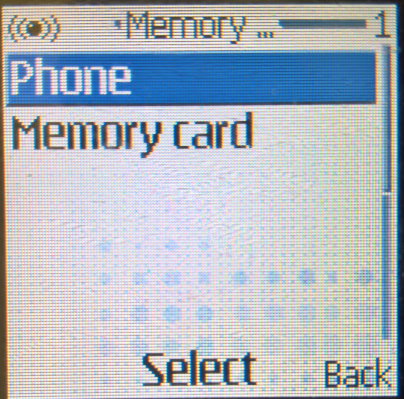

The memory card can also be accessed and managed here, and files can be copied over from phone memory to the memory card. Upto 128MB is officially supported, using the MultiMedia Card standard (MMC). The added storage makes the device useful for an MP3 player.

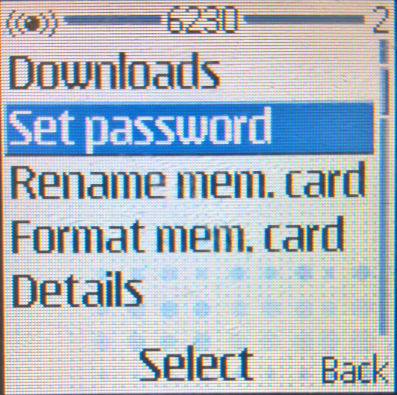

As a layer of security, you can set a passcode for the memory card, which must interfered when the card is inserted into another device.

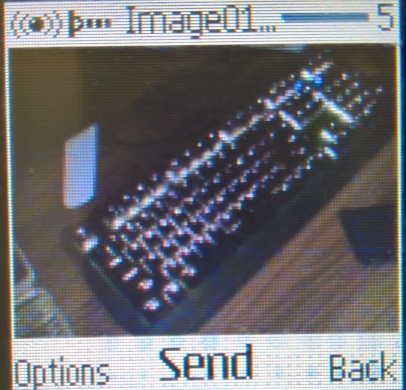

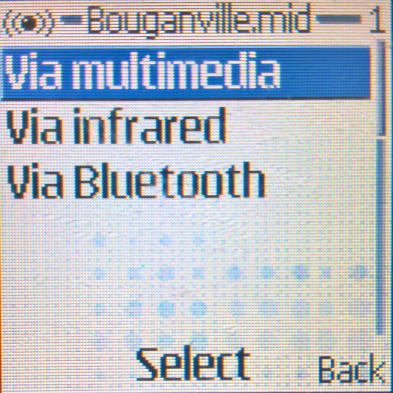

One poor design decision is the Send soft key when you are viewing a photo, pressing it directly inserts it into an MMS message, however you assume it would give you a menu to choose from if you want to send via MMS, Bluetooth or Infrared.

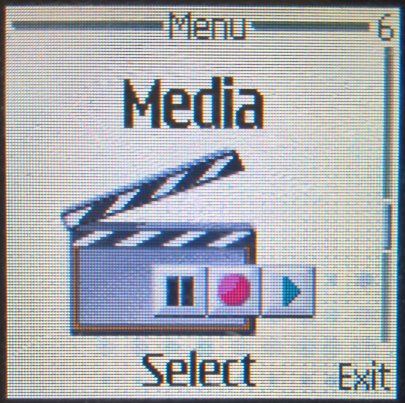

Media

This is where you can access most of the phone’s multimedia functions,

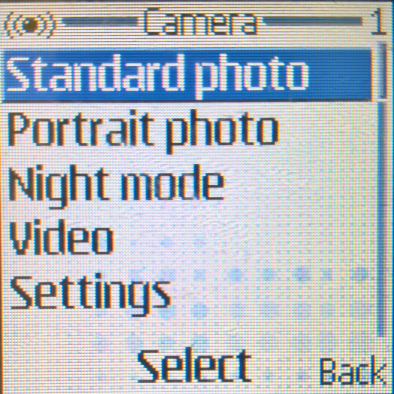

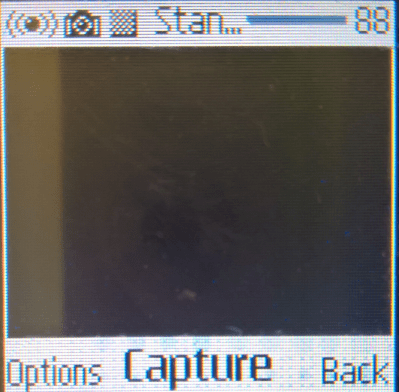

The Camera can capture phones in regular and portrait modes, and an added night mode lets you try to take photos in low-light conditions. The files are saved in the JPEG format, and three types of compression can be used.

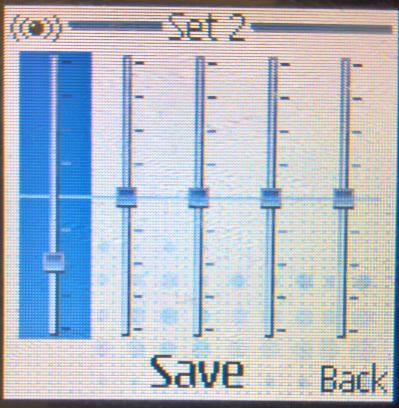

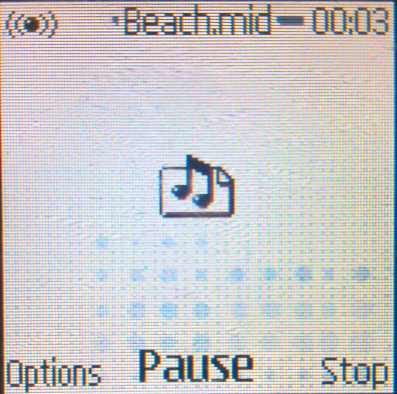

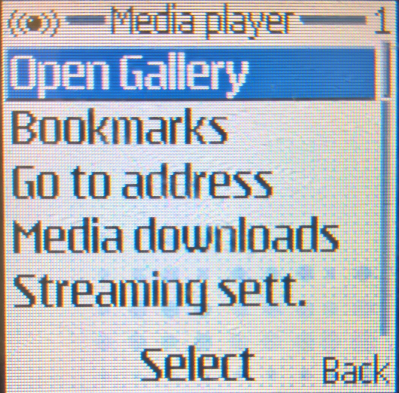

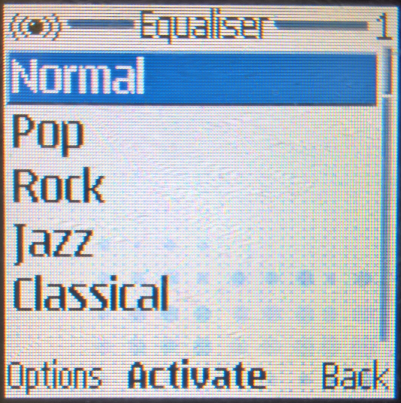

Media Player – Plays multimedia files like MP3 files. You can adjust the audio using the equalizer to adjust the sound output.

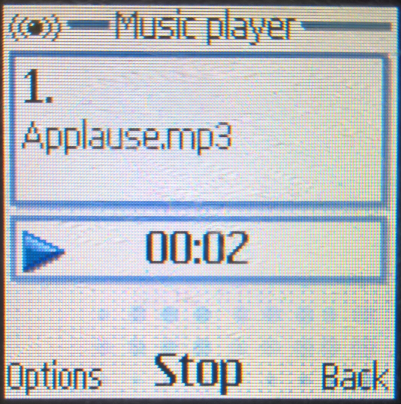

Music Player – Searches for and plays back Mp3 files, and supports the use of playlists.

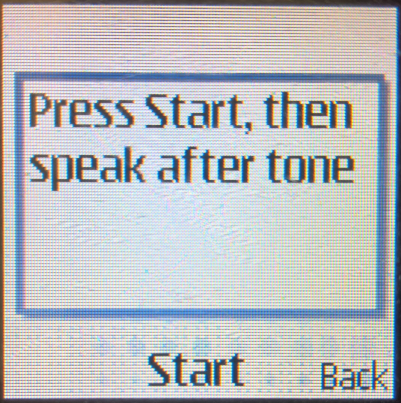

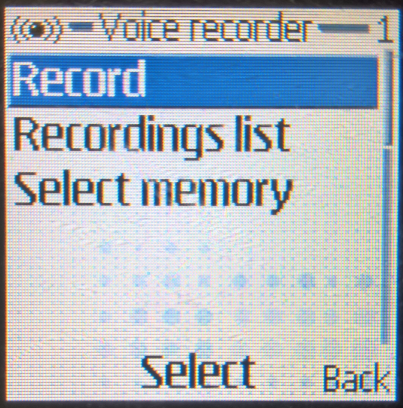

Voice Recorder – lets you record upto 3 minutes of speech, which can function during a phone call when the handset is on loudspeaker mode.

Radio – FM radio player, this requires the handsfree or the headphones to be connected, since it functions as the radio’s antenna.

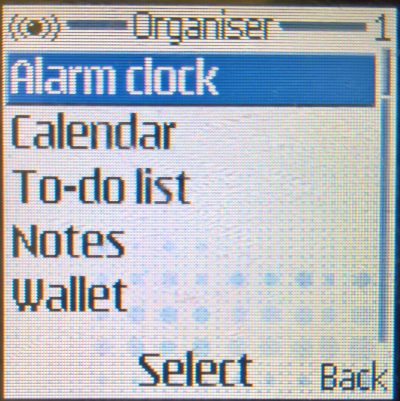

Organizer

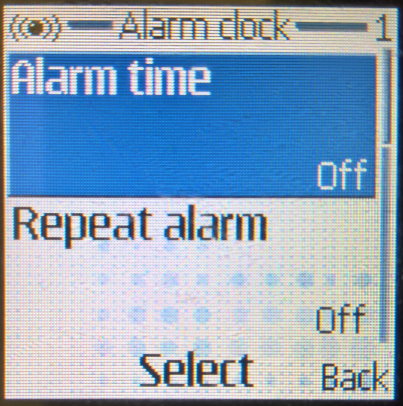

Alarm Clock: A single alarm can be set, and can be on set days of the week. A unique ringtone can be set for the alarm to distinguish it from the regular ringtones, or it can be set to play the radio, which requires the headset to be connected for it to play.

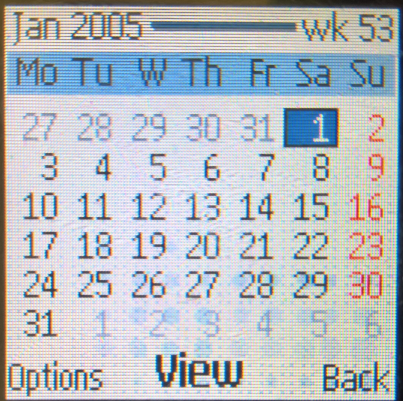

Calendar: A monthly calendar can be displayed, and up to around 200 entered can be set into the handset memory. You can view the calendar weekly or monthly, depending on which is preferred, and you can jump directly to a date, which seems to max out at the year 2080 of which the phone wraps around to 1980.

I’d be surprised if this phone will even be in use by then

Types of calendar events that can be added are meeting, call reminders, birthday, normal reminders and memo)

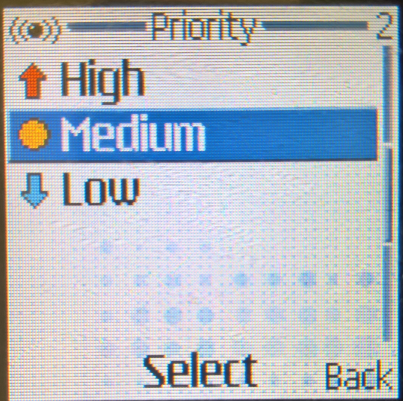

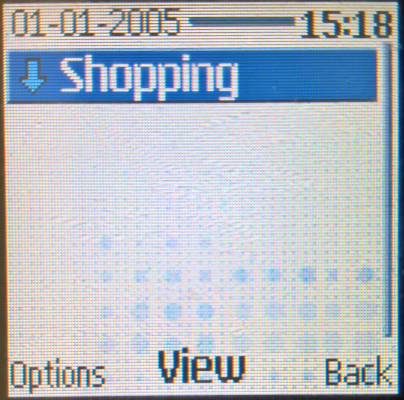

To Do List: Create occasions with three proitory rates, being High, Normal and Low, with the deadline date being set. The text editing interface is almost the same as the SMS composer.

Wallet: Information here can be protected by a passcode which makes it useful to store sensitive information like payment info.

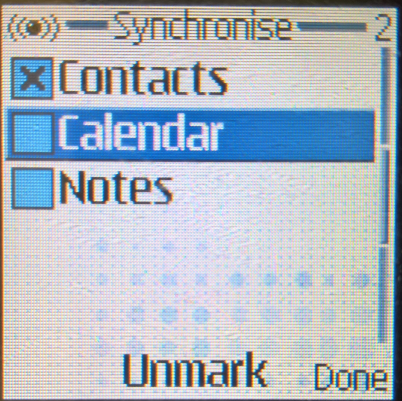

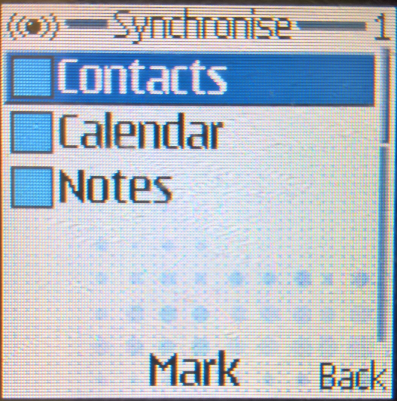

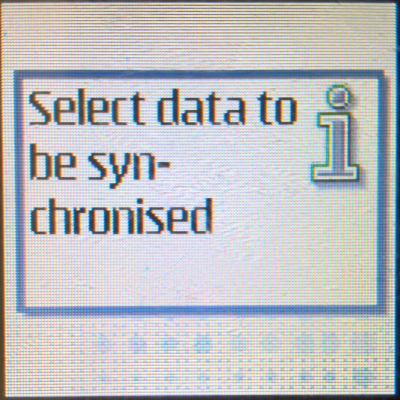

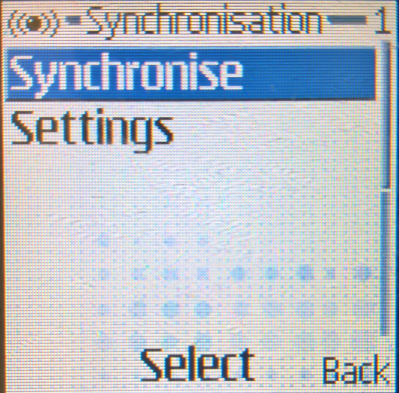

Lastly there is a sync utility that lets you synchronise the data on your phone with an external server, which can then sync with a desktop PC or a PDA.

Applications

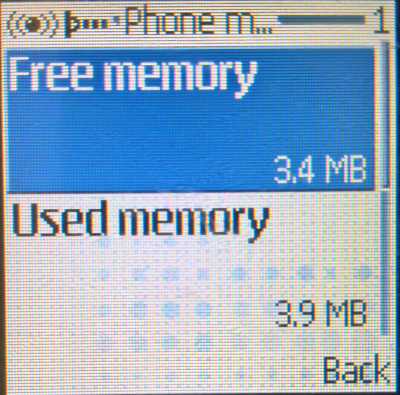

J2ME, which is the mobile implementation of Java is supported here, and Nokia have included a few games with the handset. Applications can only be saved onto the phone’s internal memory and is limited to 1.5MB which is shared across all applications.

Nokia also offered free downloadable games that could be downloaded through the internal browser.

Games that come included are Golf, Chess and a Beach Rally II. Additional games can be installed using the Nokia PC Suite, or through the WAP browser, but they have a chance of being installed under the Collection folder, rather than games.

For applications, a unit converter and a world time app are preinstalled.

Web

The XHTML browser, mobile websites could be browsed, and up to 20 bookmarks can be saved for easy access. There is also a service inbox that saved any web links your network operator may send. WAP sites can also be accessed, but these were quickly falling out of favor with the rise of proper mobile internet.

Photo Captures

Images have a VGA resolution of 640 x 480
