Using ntl CR3 Guide on Virgin Media 2021

Previously I connected a former ntl box (Pace Di4000N) running an old outdated version of its guide software to a modern Virgin media network in attempt to see what would happen, the result was it could load the TV guide listings somewhat (now & next) but the channels would be out of order. There was also no chance of receiving any channels, since the NetID didn’t match my area.

ntl bromly CR3 on modern Virgin Media

I came across an ntl: Langely box (Pace Di4001NC) which still had an older build of its software installed, which was later build than the Di4000 box described above. It can take a few boot attempts to get it to load the TV channels, sometimes it gets stuck on the loading screen.

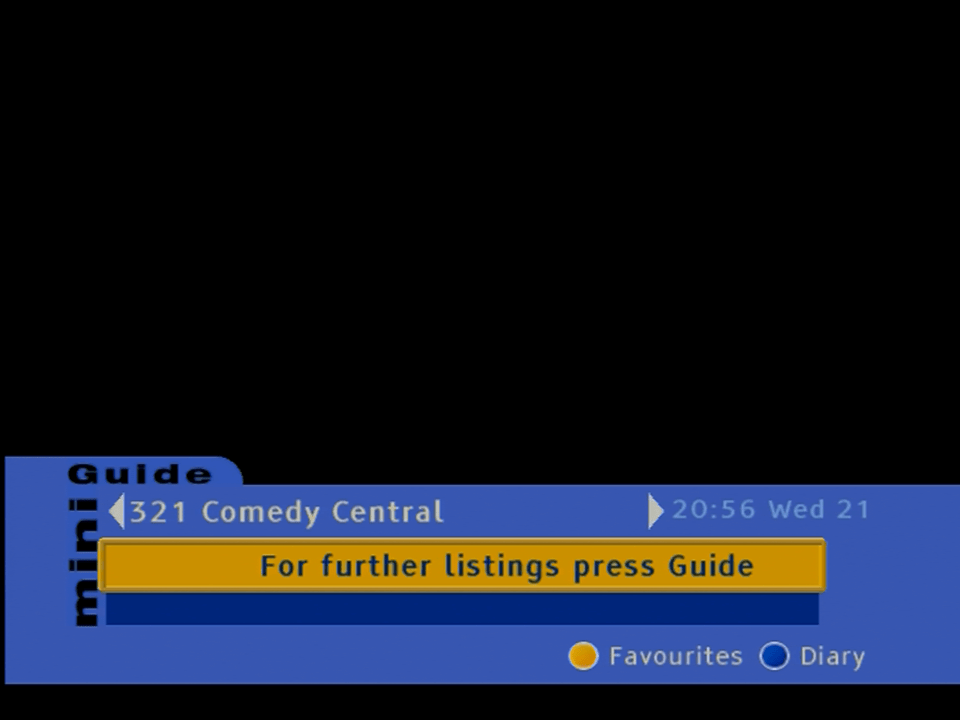

Well it defaults onto channel 321 upon bootup

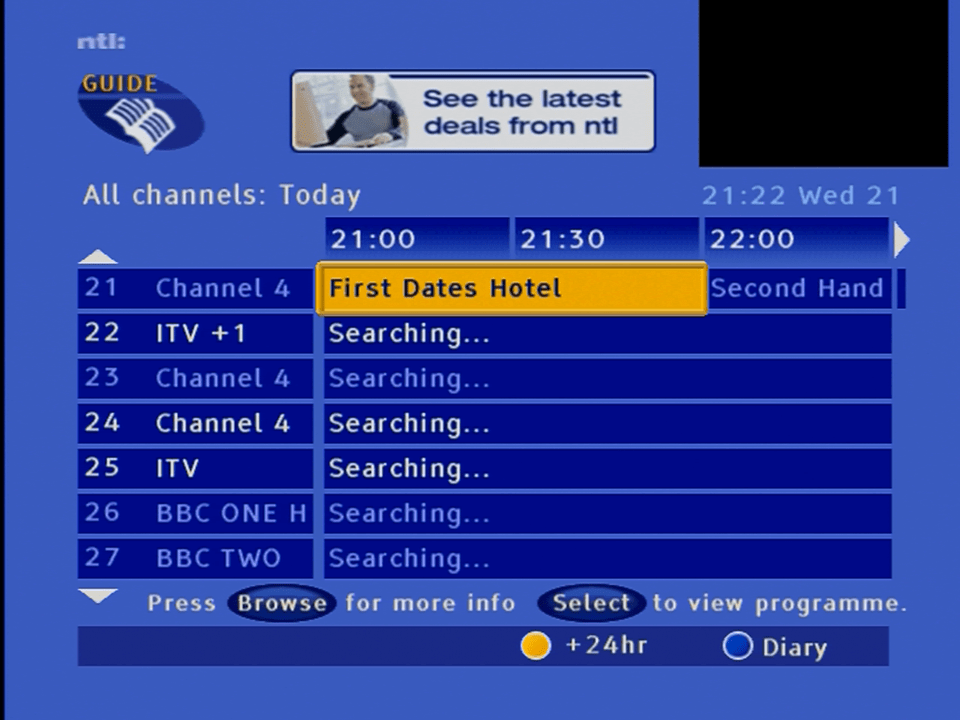

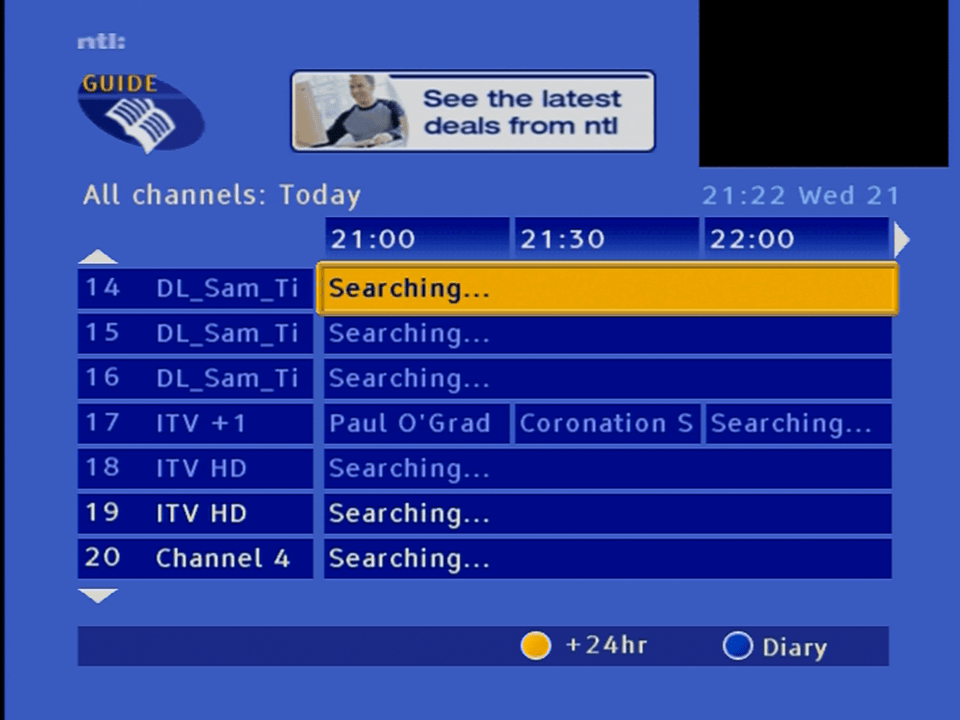

Attempting to browse TV listings via the TV Guide browser, some listings do come through whilst others seem to be missing

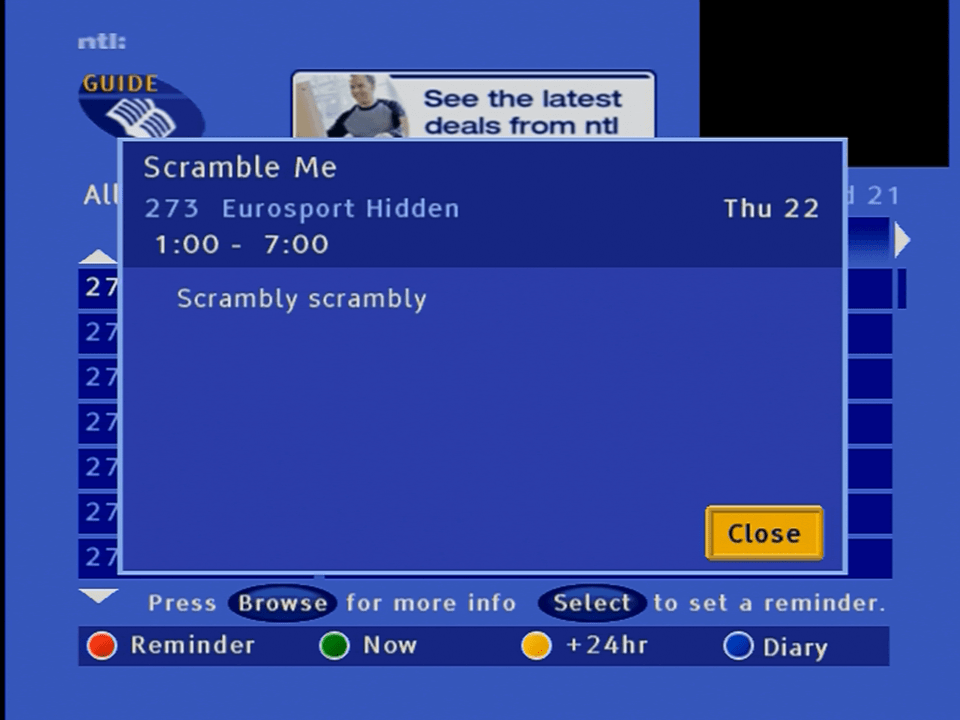

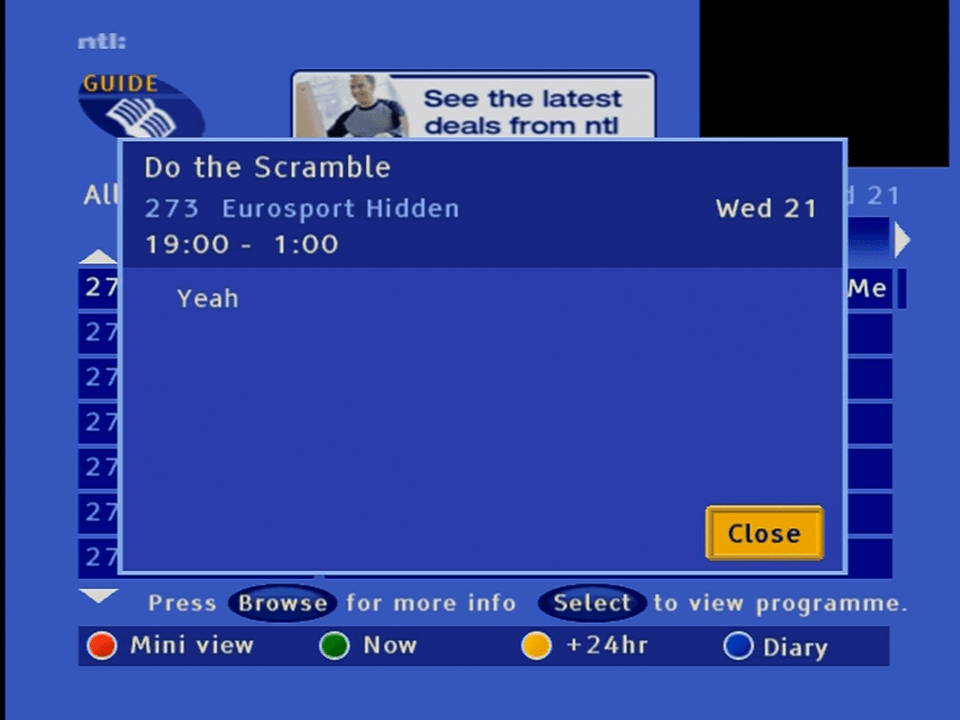

At least program synopsis works somewhat

From what I’ve researched, ntl used a proprietary iEPG system for its listings, which may have used the regular DVB SI for program listings, with the iEPG handling the extra stuff that the regular DVB-SI didn’t cover. This could apply to channel genres and maybe the numbers themselves

Adding events to the diary, which is similar to the personal planner in Sky Guide

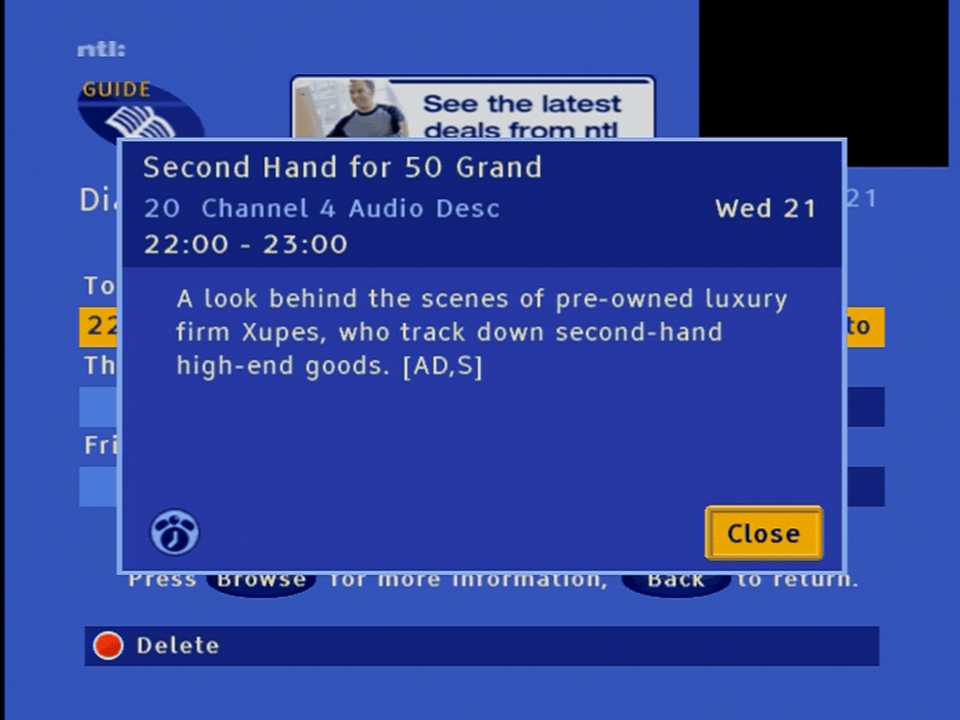

Information for a future event

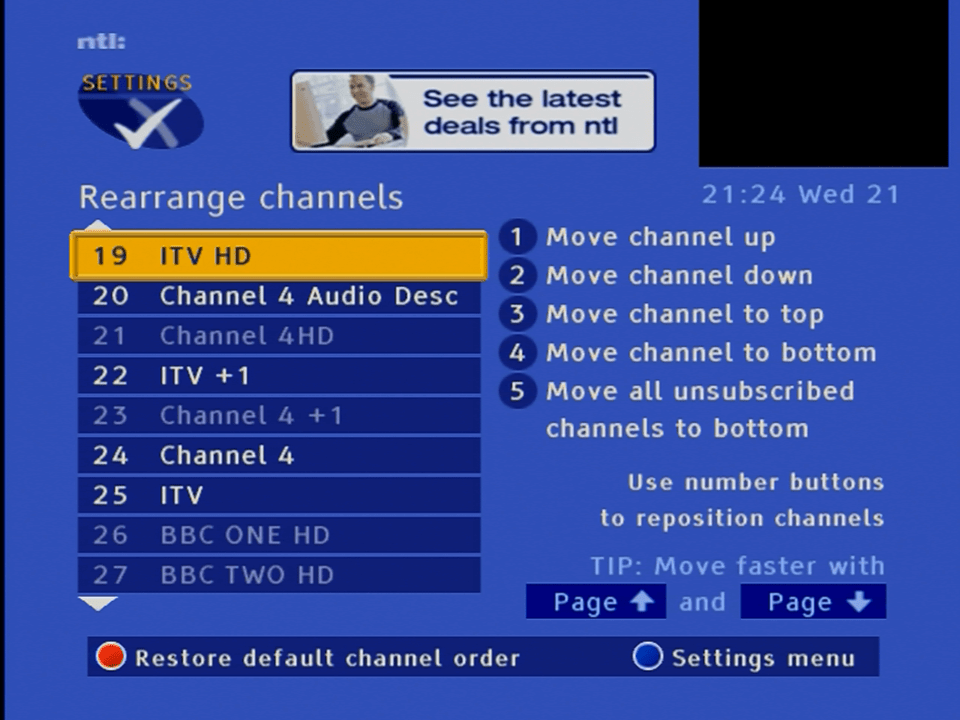

A list of channels, ntl CR3 had the ability to reorder the channel list to the user preference, a feature that was lost when it was replaced by the Virgin Media UK2 software. (UK1 in some areas)

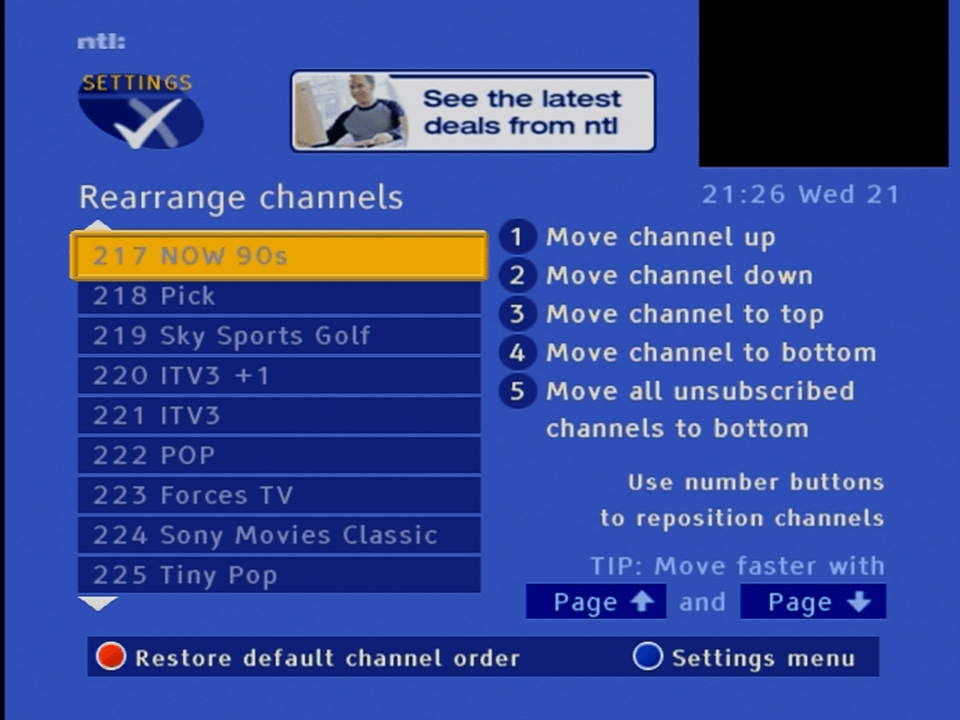

Further list of channels, These are not in EPG order, rather the box assigns them channel numbers by itself

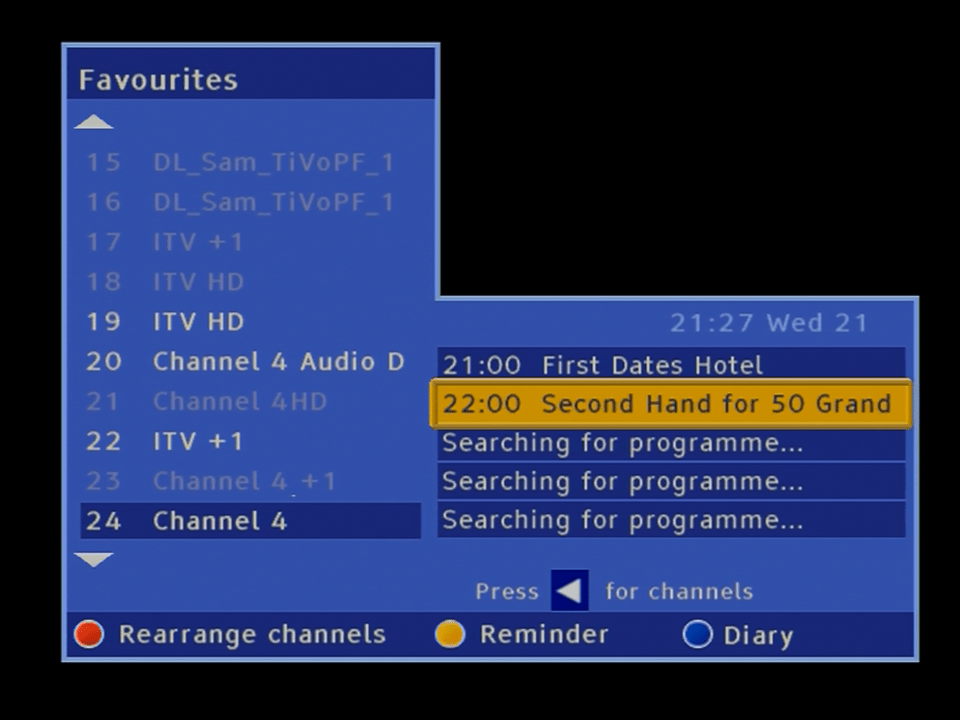

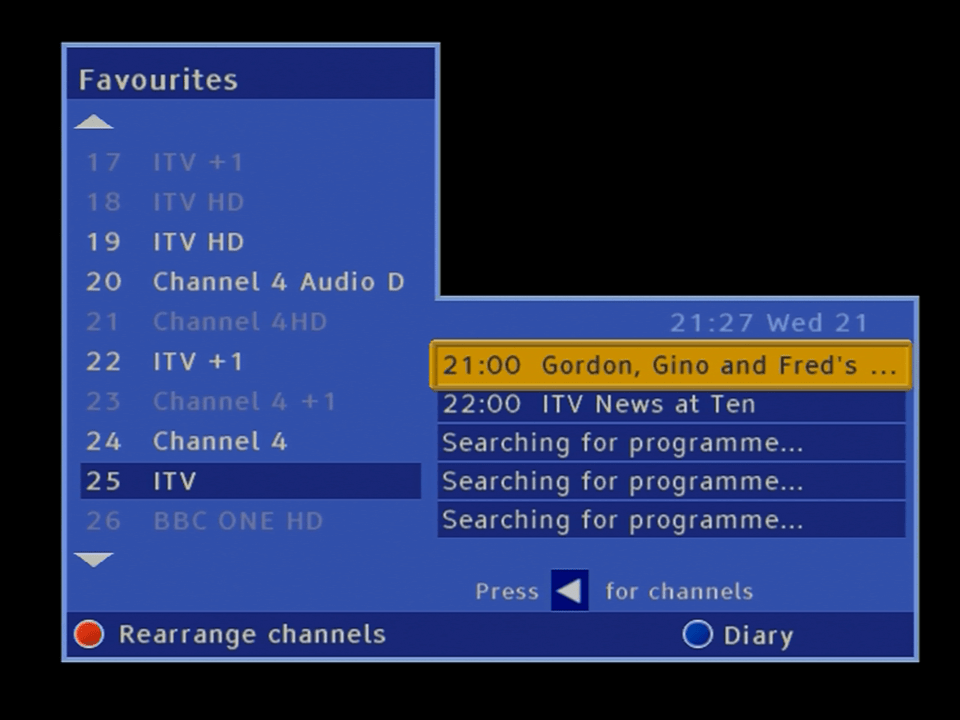

List of channels using the favourite channels feature

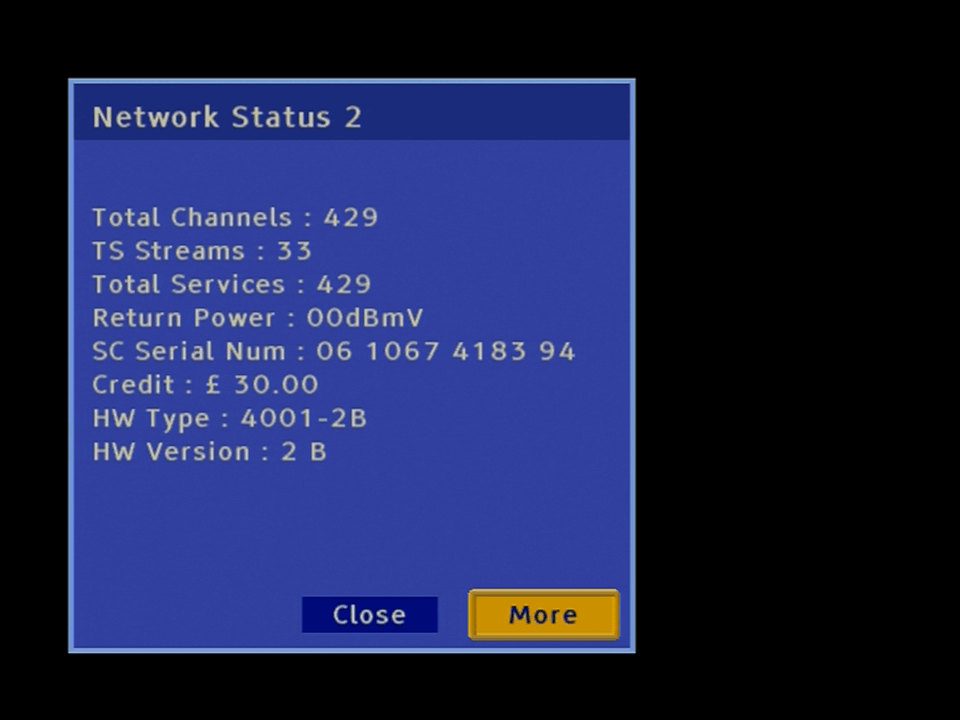

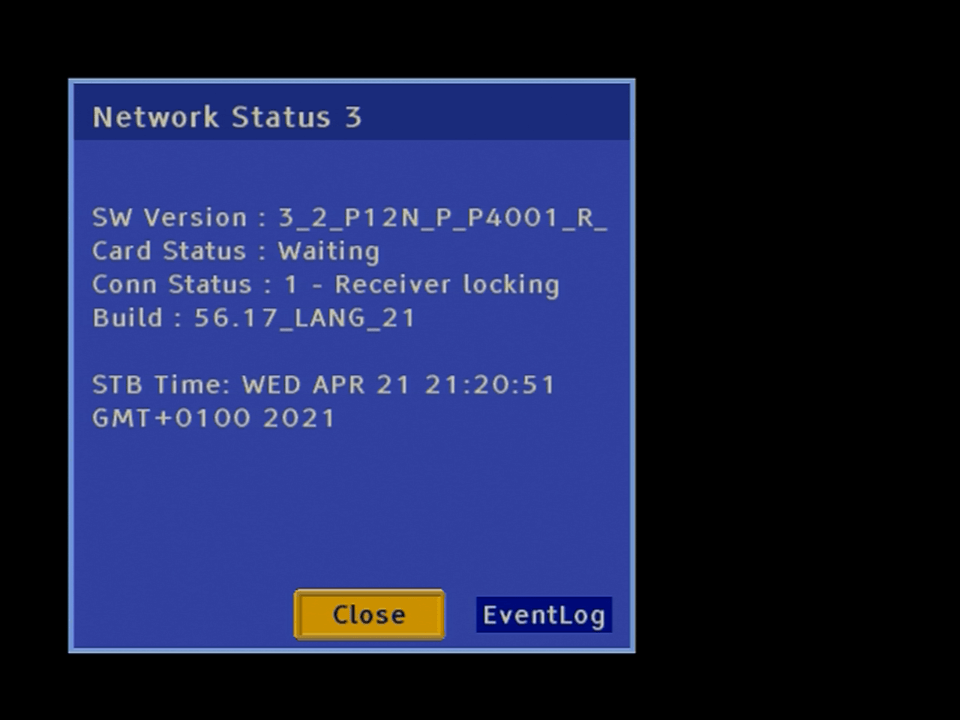

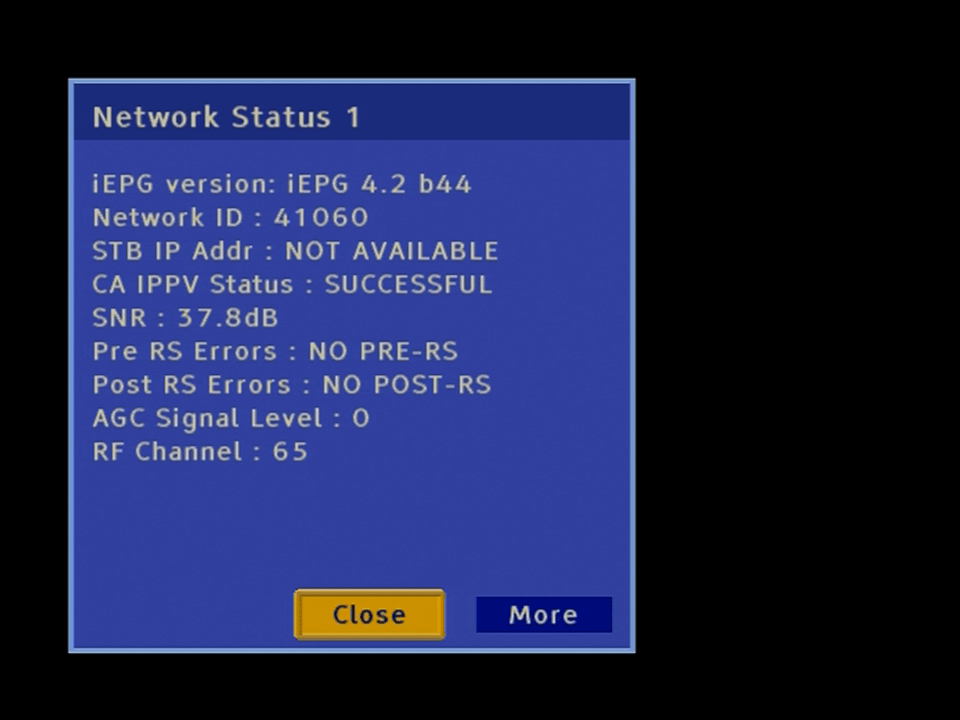

And finally some system and technical information

Still no channels come though, likely due to the Network ID being incorrect, and with the Di4001 boxes, they were designed to set their own Network ID. In practice however it seems to cycle through the different Network ID’s that Virgin Media use, perhaps the box was not designed to handle multiple Network ID’s?
